Join us as we explore the exciting realm of WIFI 7 technology. In this article, we'll delve into its potential advantages, provide an in-depth overview of this cutting-edge advancement, and shine a spotlight on Zyxel access points (APs) WBE660S that are leading the charge in embracing this innovative technology
Introducing WiFi 7
WiFi 7 is the next-generation WiFi standard, designed to provide an Extreme High Throughput (EHT) WiFi experience. It operates in the 2.4GHz, 5GHz, and 6GHz bands, making it capable of delivering blazing-fast speeds, significantly lower latency, and remarkable reliability. Notably, WiFi 7 maintains backward compatibility with previous WiFi standards, including WiFi 4, WiFi 5, WiFi 6, and WiFi 6E.
General Enhancements WiFi 7
- More advanced modulation technology- 4096-QAM
- More MIMO antennas allowed - Up to 16x16 MIMO

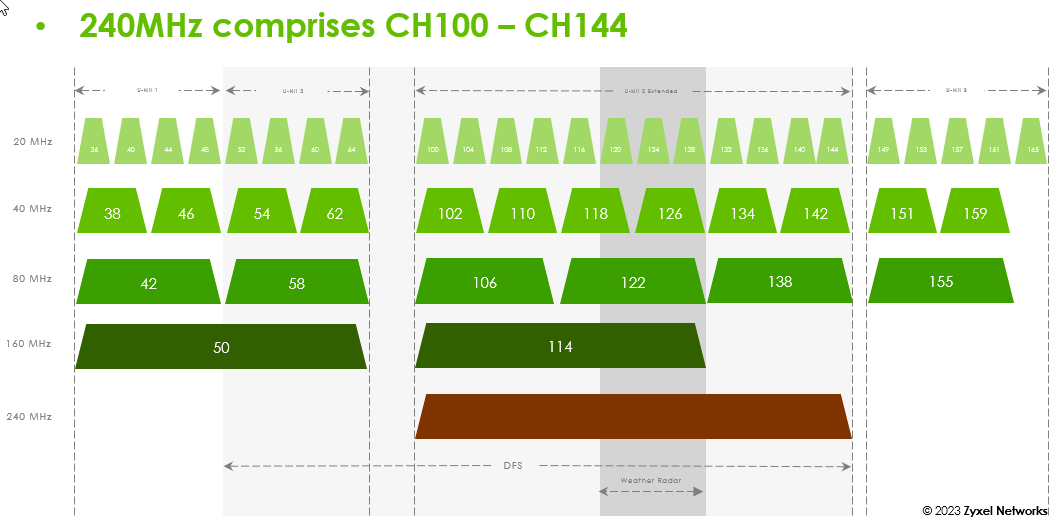

Wider Bandwidth - 6GHz Band: 320MHz - 5GHz Band: 240MHz (FCC)
Key Features of WiFi 7
1. 5x Faster Speeds: WiFi 7 sets new records with astounding maximum speeds of up to 46Gbps, which is five times faster than the 9.6Gbps offered by WiFi 6/6E. This means that WiFi 7 can handle data-intensive tasks such as 8K video streaming, virtual reality applications, and large file downloads with ease.
2. 100% Lower Latency: WiFi 7 boasts significantly improved latency performance, thanks to new capabilities like Multi-link operation (MLO). MLO allows devices to simultaneously send and receive data across multiple bands, increasing throughput and reducing transmission latency.

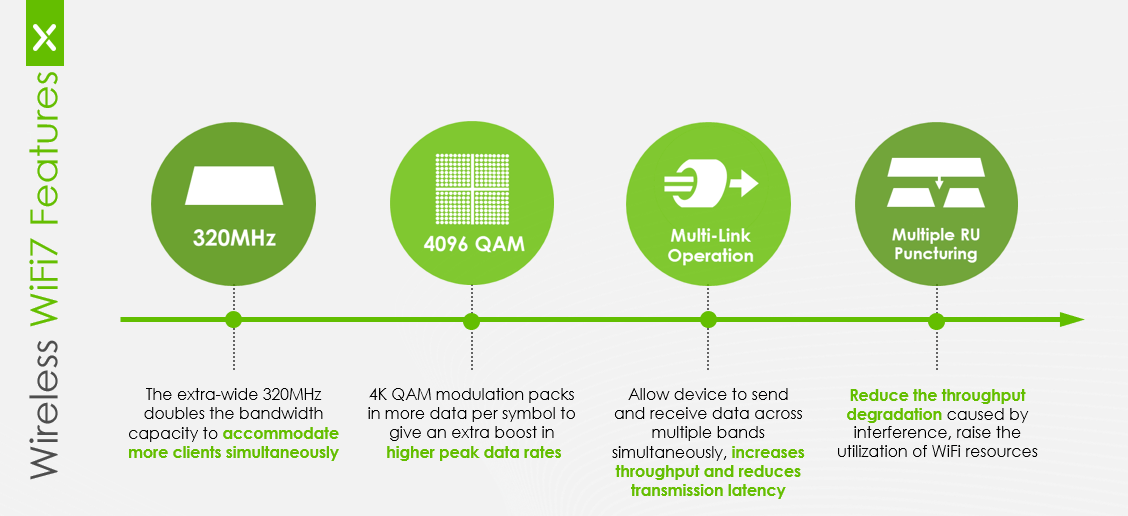

3. Wireless Features: WiFi 7 introduces several advanced features, such as the extra-wide 320MHz channel, 4K QAM modulation for higher data rates, and puncturing to reduce interference. These features increase the overall efficiency of the network and improve user experiences.

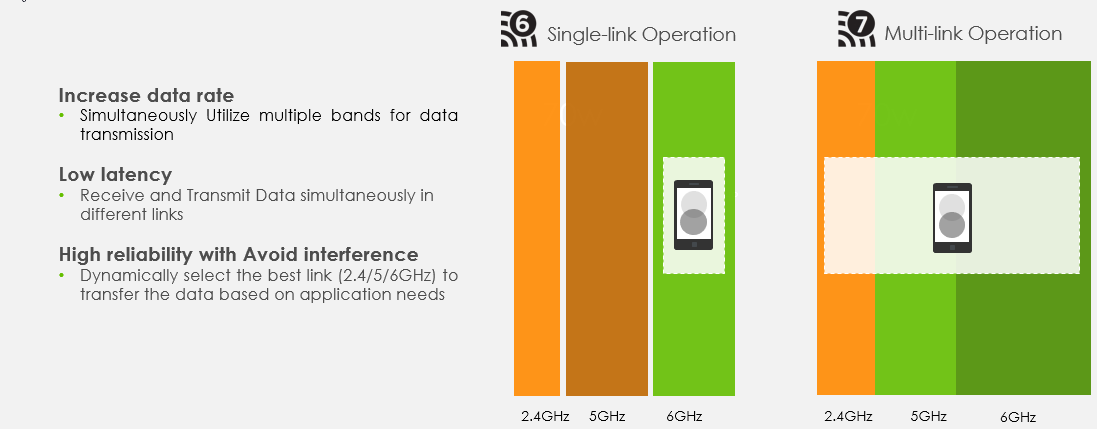

4. MLO (Multi-link Operation) Benefits
Multi-link Operation (MLO) is a key feature of WiFi 7, offering various user benefits:
Increase Data Rate: MLO allows devices to simultaneously utilize multiple bands for data transmission, resulting in higher data rates.
Low Latency: With MLO, devices can send and receive data simultaneously on different links, reducing latency.
High Reliability and Interference Avoidance: MLO dynamically selects the best link (2.4GHz, 5GHz, or 6GHz) to transfer data based on application needs, ensuring high reliability and avoiding interference.

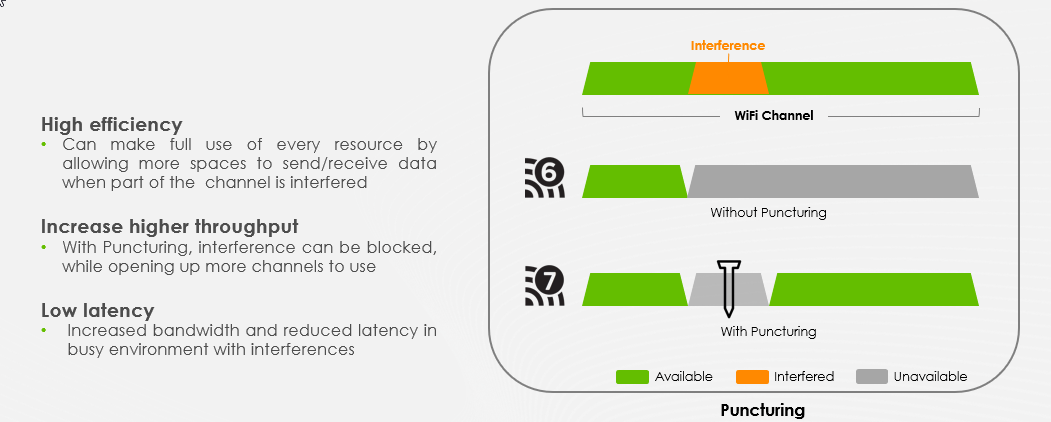

5. Puncturing Benefits
Puncturing is another feature of WiFi 7 with multiple benefits:
High Efficiency: Puncturing enables the efficient utilization of available resources by allowing more data to be sent and received, even in the presence of interference.
Increased Throughput: By blocking interference and opening up more channels for use, puncturing leads to higher throughput.
Low Latency: In busy environments with interference, puncturing results in increased bandwidth and reduced latency.
In conclusion, WiFi 7 represents a significant leap forward in wireless communication technology. With its exceptional speed, lower latency, and advanced features, WiFi 7 is poised to revolutionize the way we experience wireless connectivity.

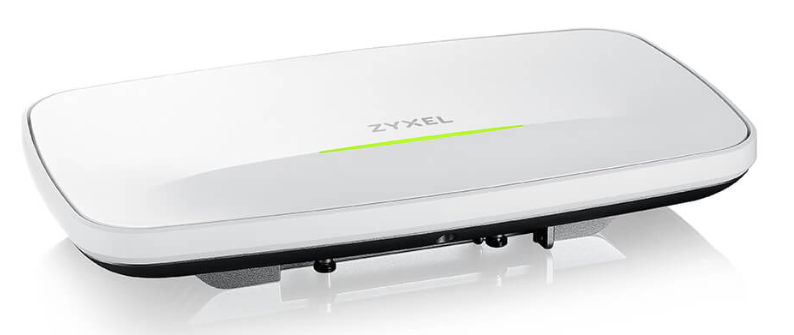

BE22000 WiFi 7 Triple-Radio NebulaFlex Pro Access Point WBE660S
|Description||802.11be (WiFi 7) Triple-Radio Unified Pro Access Point|
|Gain||3.0 dBi@2.4 GHz, 5.0 dBi@ 5 GHz, and 5.0 dBi@ 6GHz|
|Uplink Speed||10GbE (Multi-Gig 1/2.5/5/10G)|
