[QA] LED Blinking Pattern - description of the behavior of the light indication

This article offers a comprehensive overview of indicator lights on Zyxel devices, including firewalls, switches, access points, modems, and more. It explains the various light patterns and their meanings, helping you better understand device status. Additionally, it guides you on where to find this information across Zyxel devices, enhancing troubleshooting and overall comprehension.

Since the behaviour of light indicators can vary across different types, models, and versions of the same device, we always recommend you use the user manual for the specific device. Below are the ways you can access this information:

  1. The user manual for all current devices is available through a link in our Download Library
  2. Check out the information on our Zyxel Community Portal

Below we have given some examples of light indication, however, the best way to find a description of the behavior of the light indication is, of course, to refer to the operating manual of the device: Download Library

Access Point LED Blinking Pattern

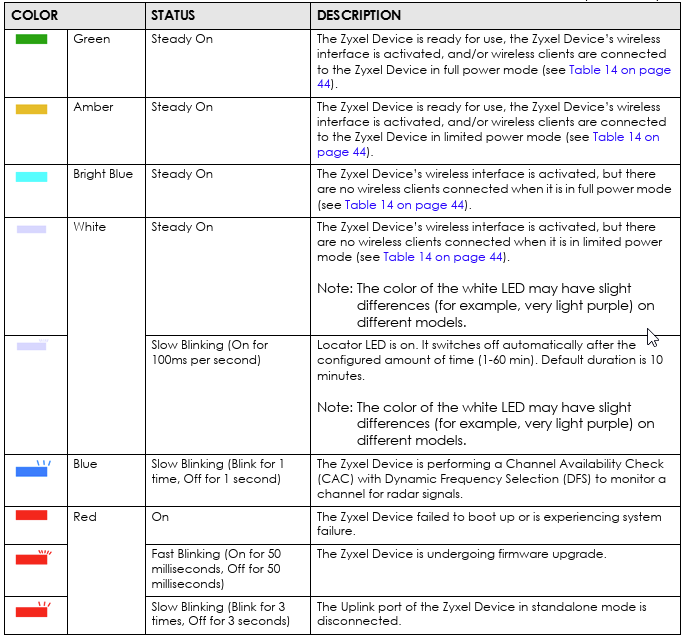

 NWA130BE / WBE530 / WBE630S / WBE510D / NWA210BE / NWA110BE LED

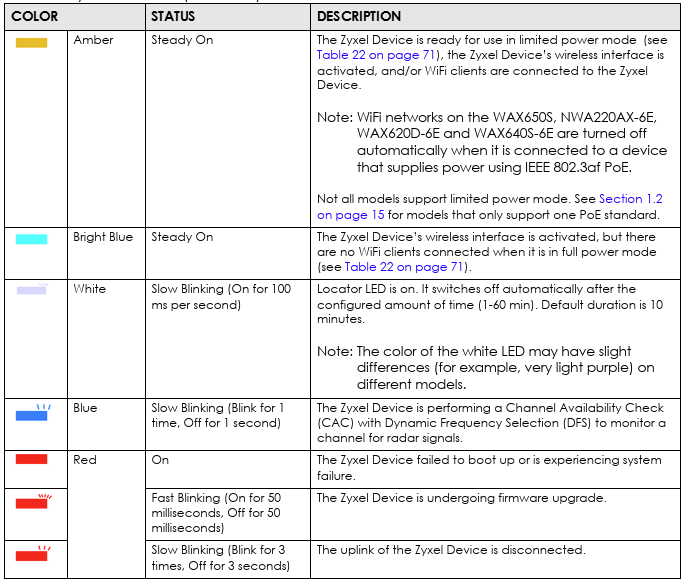

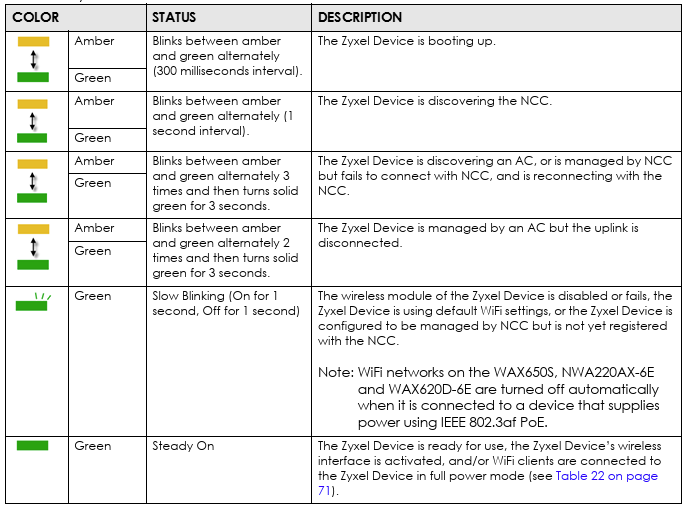

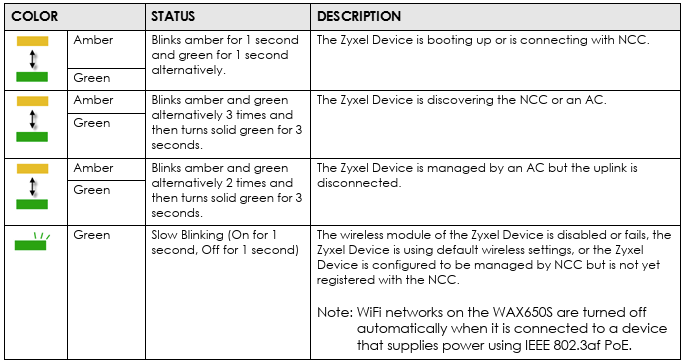

WAC500, WAC500H, NWA1123ACv3, NWA110AX, NWA210AX, WAX510D, WAX610D and WAX650S

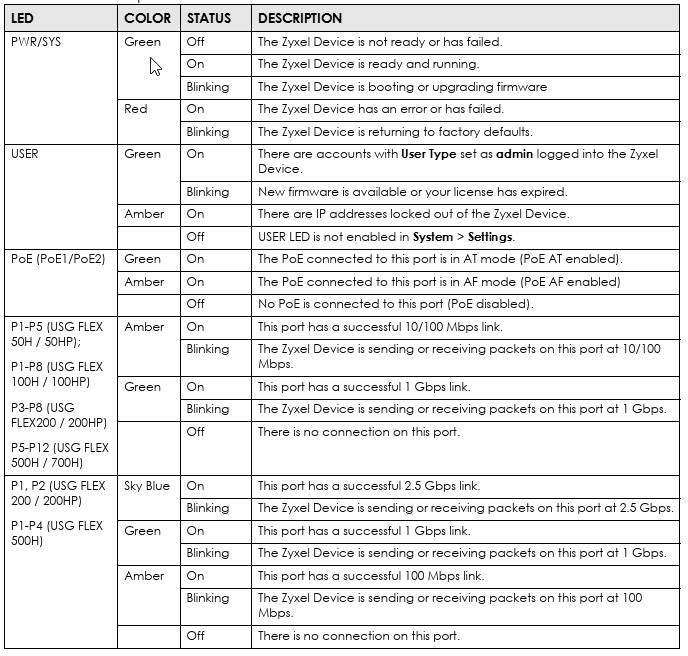

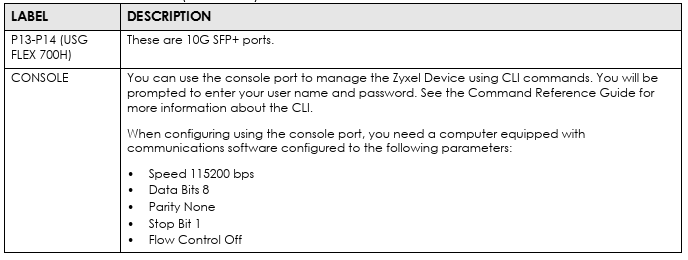

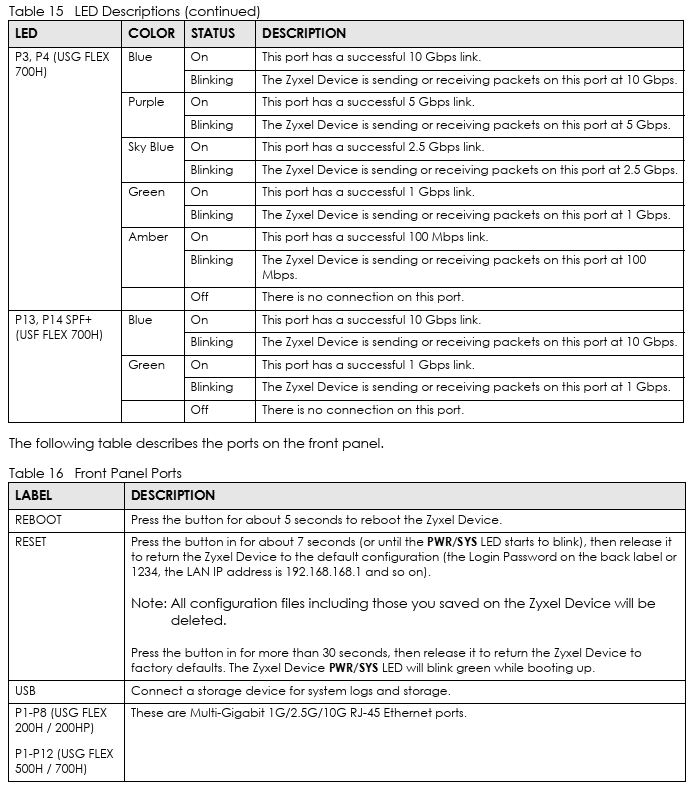

Firewall H Series LED Blinking Pattern

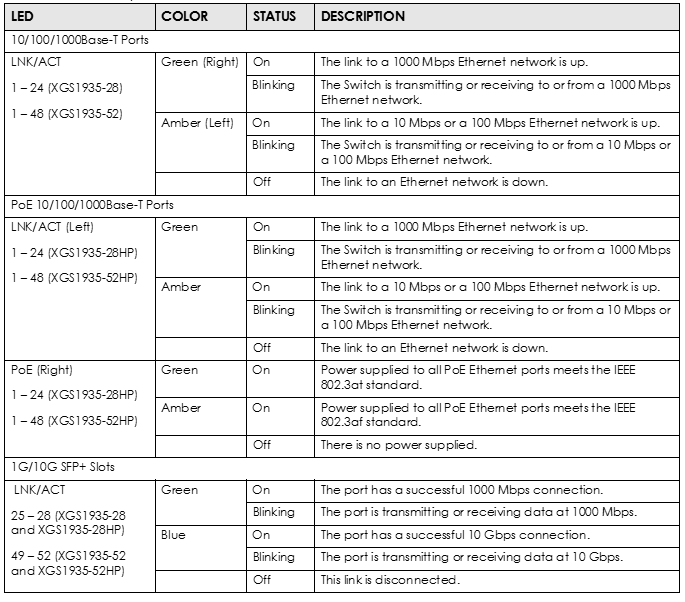

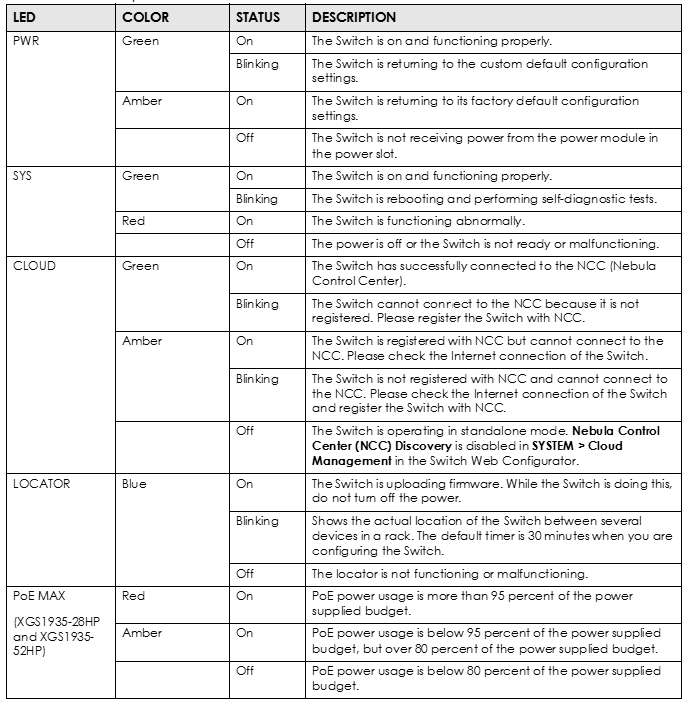

Switch LED Blinking Pattern
