This step by step guide shows how to capture AP packets directly within NXC controller.

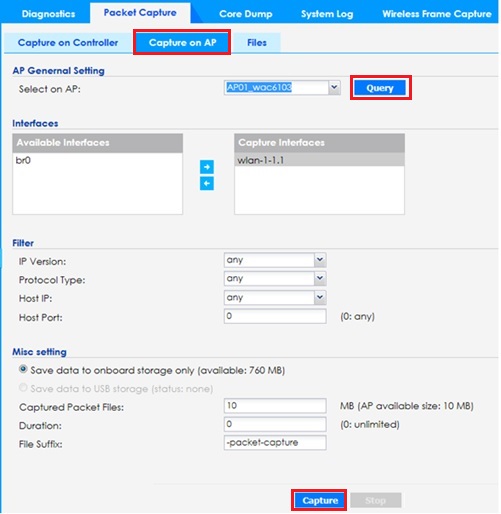

In the GUI of NXC, navigate to: Maintenance->Diagnostics->Packet Capture
This feature only works with the following AP models:
WAC5300 series
WAC6300 series
WAC6100 series
WAC6500 series
NWA5123-AC
NWA5123-AC-HD
Standalone (Fat) AP doesn’t support Capture GUI
KB-00464
