This article will show how to configure the Facebook authentication social login in Nebula Control Center. June 12, 2023 Meta has put the Facebook WiFi login as end of life and will no longer be supported.
Note!
June 12, 2023 Meta has put the Facebook WiFi service as end of life (End of Life) and will no longer be supported.
1) Differences between Facebook Login and Facebook Wi-Fi?
There are two ways to collect end-user's data by cooperating with Facebook. One is Facebook login, and the other way is Facebook Wifi.
Note: Facebook WiFi is a PRO Pack feature, while Facebook login is a normal feature embedded within BASE-Pack.
Facebook login is to single sign-on and signs into Facebook social networking services, without the need to create a new login account and is able to acquire the existing client's information. It is designed for simplifying logins for existing social-media user accounts over authentication.
Facebook Wifi is a service with which businesses could link their local business Facebook page and the Zyxel device together to provide Wi-Fi access to users after interacting with their Facebook accounts. When a user first accesses the Internet, the Zyxel device will redirect the browser to the business partner’s Facebook page. Users are guaranteed Internet access after they checked-in on the specific Facebook page.
The table is a comparison between Facebook login and Facebook Wi-Fi:
|
|
Facebook login |
Facebook Wi-Fi (PRO-PACK) |
Guest/Venue Benefit |
|
Venue owner Facebook require |
APP ID is required. |
Fans Page is required |
Venue owner can do the business promotion via Facebook Wi-Fi |
|
Guest Facebook account require |
Mandatory |
Optional |
Guest can keep user privacy with Facebook Wi-Fi |
|
WiFi Access |
No account, no access |
user can skip check-in or using passcode |
Guest can keep user privacy with Facebook Wi-Fi |
|
User data collection |
Collect user email when user login portal |
Collect user info on Facebook Fans Page |
Same |
|
Analytics tool from Facebook |
User data will be recorded in nebula summary port by email including email, age and gender information. |
Facebook Fans page |
Facebook Fans page analytics is more friendly. |
|
Purpose |
Another option for captive portal without guest manager involve |
Advertise owner's business by user check-in |
Better user experience on Facebook Wi-Fi |
2. What is Facebook WiFi [Social] Login?
Social Login refers to single sign-on and signs into third-party social networking services such as Facebook, without the need to create a new login account and can acquire the existing client's information. It is designed for simplifying logins for existing social media user accounts over authentication.
3) Configure Facebook Social Login
1. Toggle on SSID
Site-wide > Configure > WiFi SSID Settings
enable the selected SSID and then click Save
2. Sign-on with Facebook
NCC > AP > Configure > Authentication
Choose the selected SSID >Network Access > Captive portal > Sign-on with, select Facebook.
3. Choose access attribute
NCC > AP > Configure > Authentication > Network Access > Captive portal access attribute
On Login on multiple client devices, select "Multiple devices access simultaneously". On Strict Policy, you can determine either Allow HTTPs traffic without sign-on or Block all access until sign-on for your preference.
4. Click the Save button to apply configuration
5. Connect your device(e.g: iOS device) to the selected SSID
6. User will need to browse the HTTP site to be directed to Captive portal with Facebook login button
7. Enter Facebook login account (Email or Phone) and password, and then click Log In
8. Click Continue button to allow Zyxel Nebula to receive your public profile and email address
9. Login Success and start to browse the Internet
4) Using 2FA on iPhone with Facebook Login
With Two-Factor-Authentication (2FA) on the rise, it becomes more and more important to implement these features on our Nebula devices. This tutorial will guide you through setting up 2FA via Facebook using an iPhone.
With Facebook Two-Factor Authentication (TFA), an additional code via the Facebook App is necessary to complete the sign-in process.
However, iPhones will general disconnect from the AP if you attempt to navigate away from the Apple CNA.
This prevents guest clients from accessing their Facebook App to obtain the TFA code.
In order to work around the iPhone's restrictions, please follow the steps below:
- Connect the iPhone to the SSID with Facebook login enabled.
- The iPhone's CNA should appear

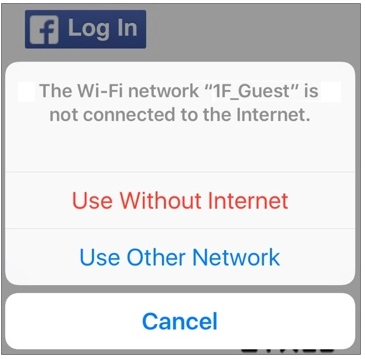

- Wait 5 seconds and tap "Cancel"
-
Additional options will appear.
- Select "Use Without Internet".
- Access your Facebook App and obtain the code from the code generator.
- Open Safari or any browser and navigate to a short URL (such as www.cnn.com).
- The AP should redirect browser to the captive portal.
- Tap the Facebook log in button and enter username and password.
- Once Facebook prompts for your code, switch to your Facebook App and check your code generator.
- Switch back to your Facebook in browser and input the code.
