Are you looking to optimize your Zyxel networking equipment installation while ensuring the utmost convenience and reliability? Look no further than the comprehensive range of Zyxel Mounting Accessories. In this article, we will look at various mounting solutions designed to install and protect Zyxel networking products from harsh environments: Zyxel Waterproof Enclosure, Zyxel Pole-Mounting-Kits(ZZ0103F and ZZ0106F), Zyxel Wall Mount-Mounting-Kits, Zyxel Ceiling mount with clips, Zyxel Desktop Mount

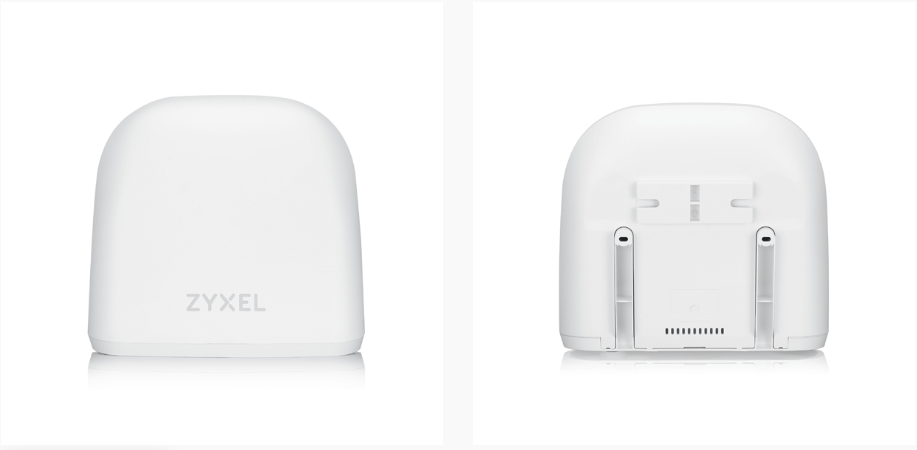

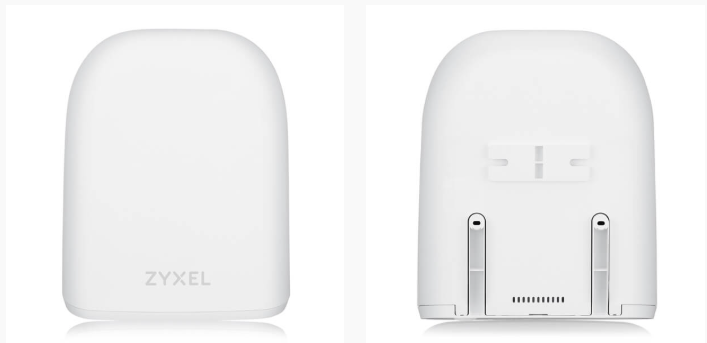

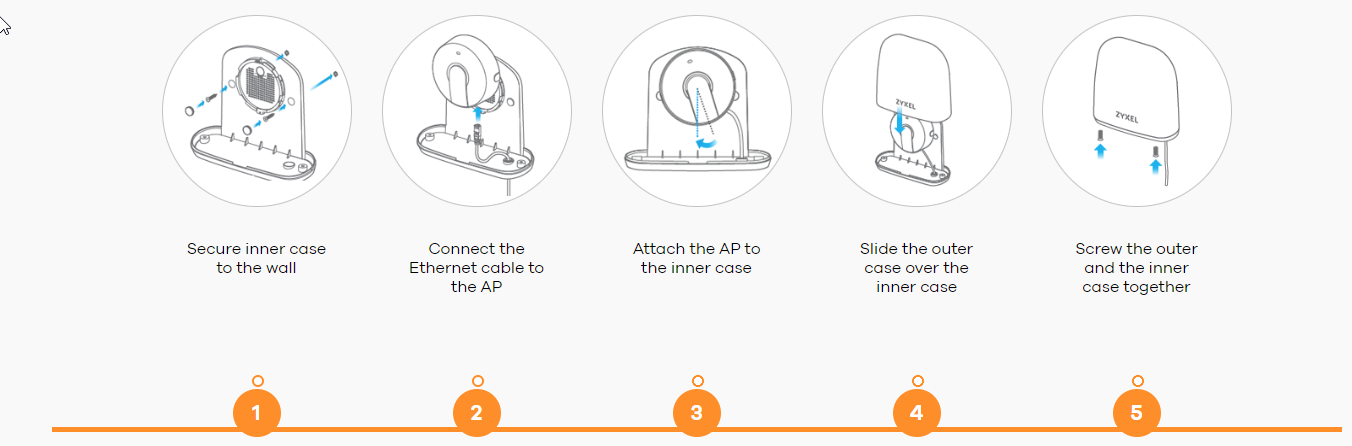

Waterproof enclosure

Our waterproof enclosure offers robust protection for Zyxel WiFi Access Points, ensuring they thrive in challenging settings. Easily mount your AP on walls or poles with this durable enclosure.

Designed to withstand extreme temperatures ranging from -20°C to 50°C, this enclosure is not only waterproof with a certified IPX5 rating but also features UV-stabilized plastic, extending the lifespan of your AP. It's the ultimate choice for reliable waterproofing

Waterproof Enclosure Compatibility list

Models	NWA220AX-6E WAX620D-6E	WAX630S WAX610D WAX510D NWA210AX NWA110AX	NWA1123-AC Pro WAC6103D-I	WAC500 NWA1123ACv3 NWA50AX NWA90AX

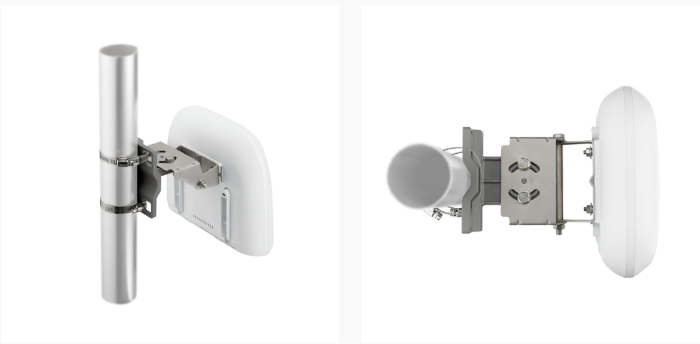

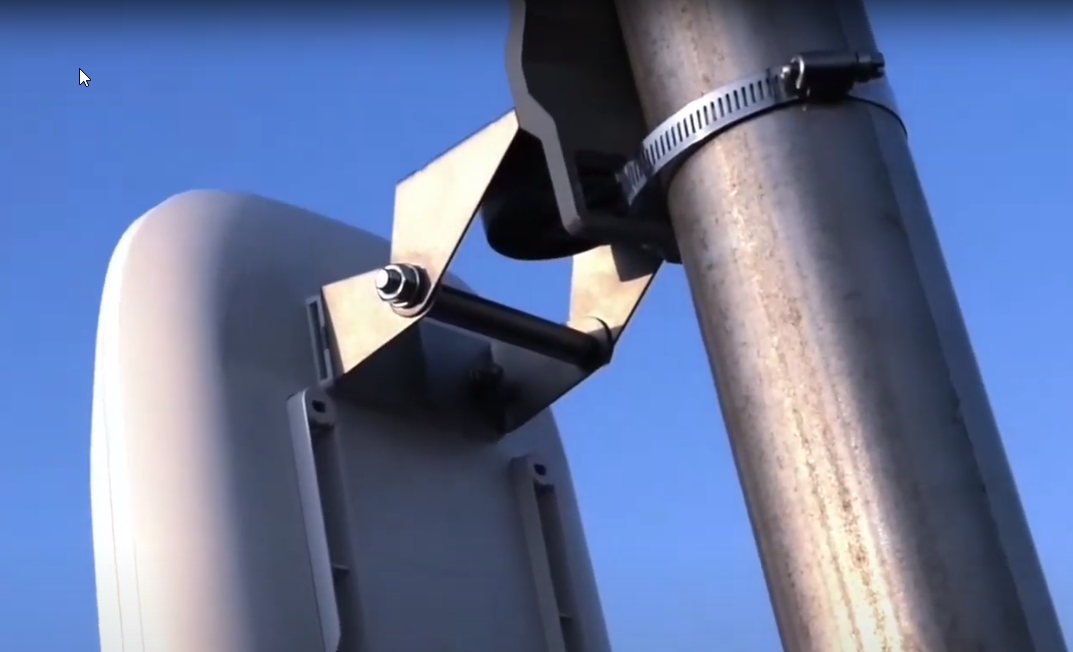

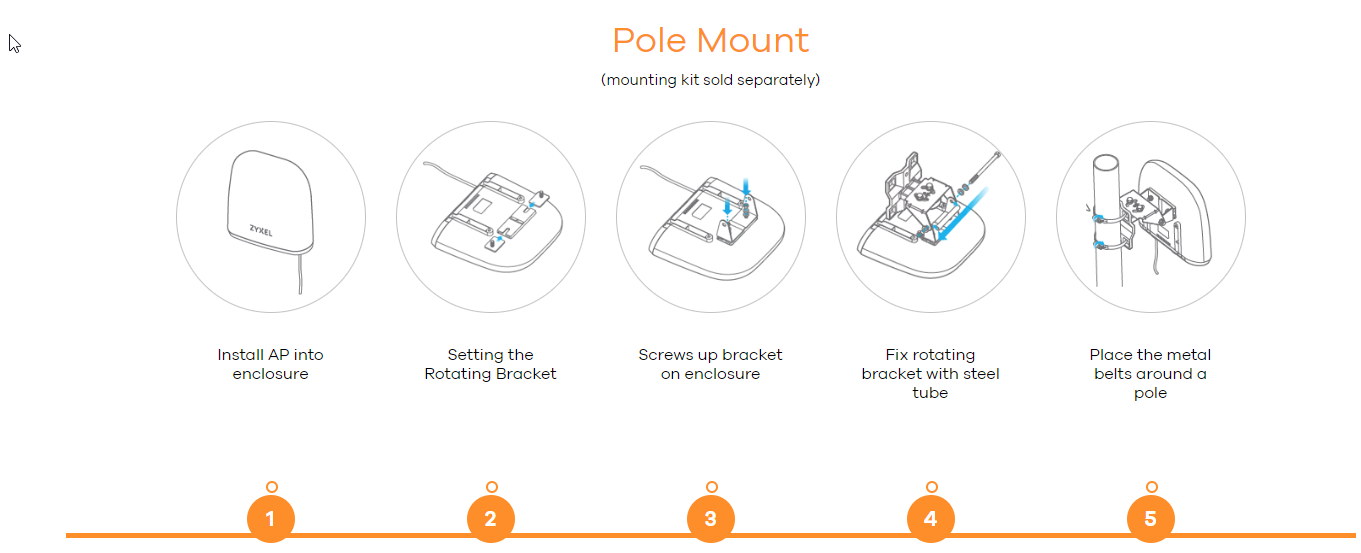

Zyxel Pole-Mounting-Kits

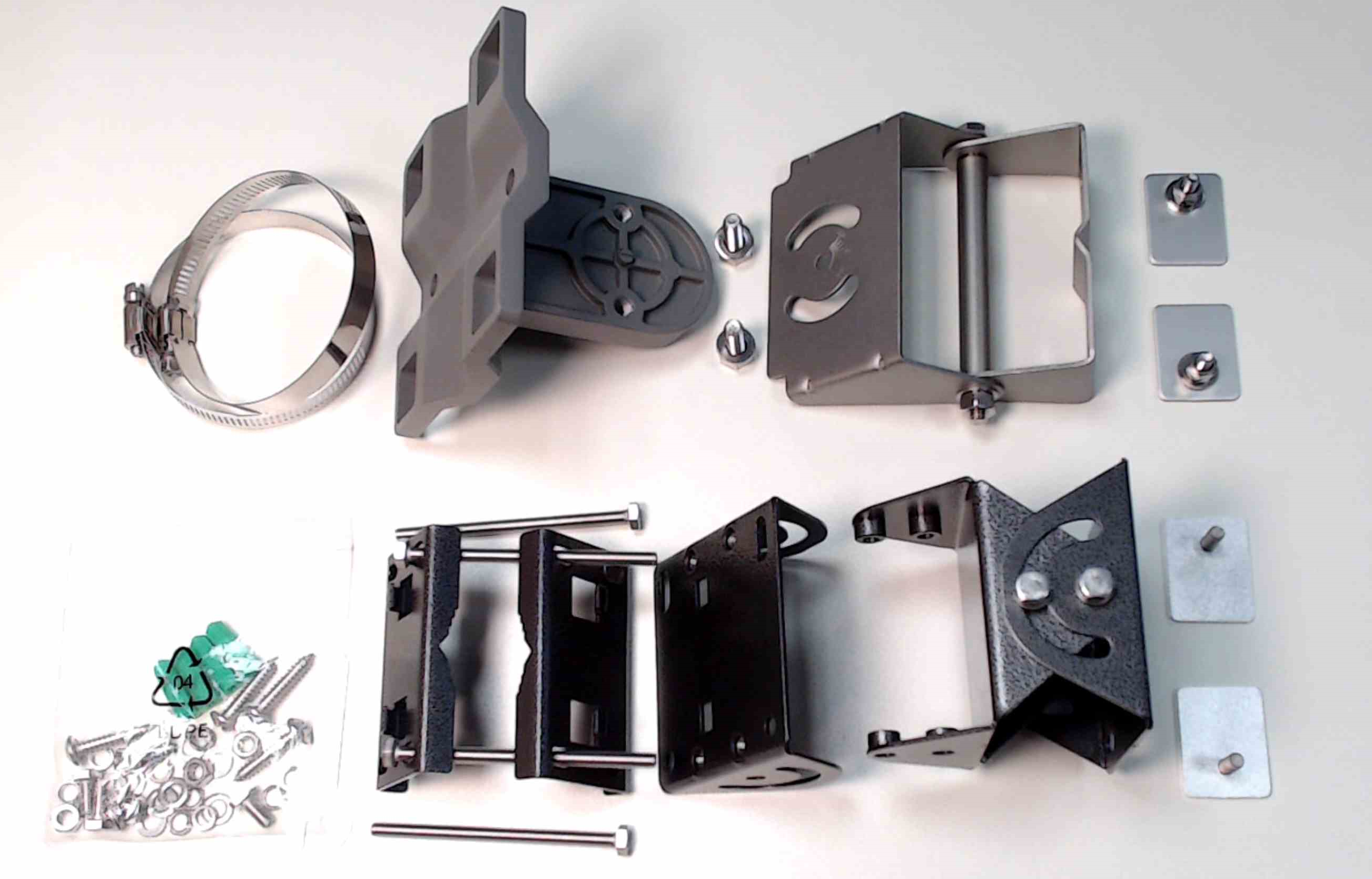

ACCESSORY-ZZ0103F

Claws with screw winding as steal belt
Pole arm
Ankle between outdoor enclosure and pole arm
Mounting plate for the leashes on the outdoor enclosure ACCESSORY-ZZ0102F

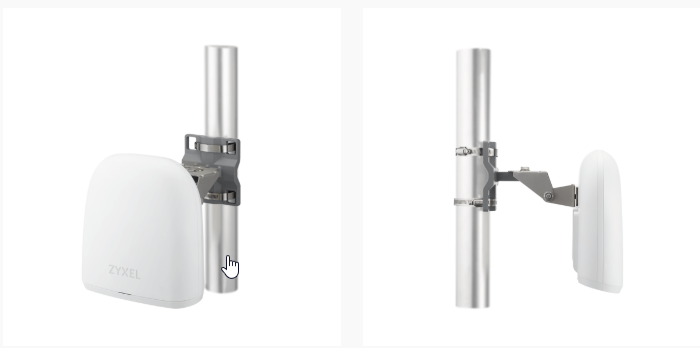

ACCESSORY-ZZ0106F

Two metal plates for pole mounting

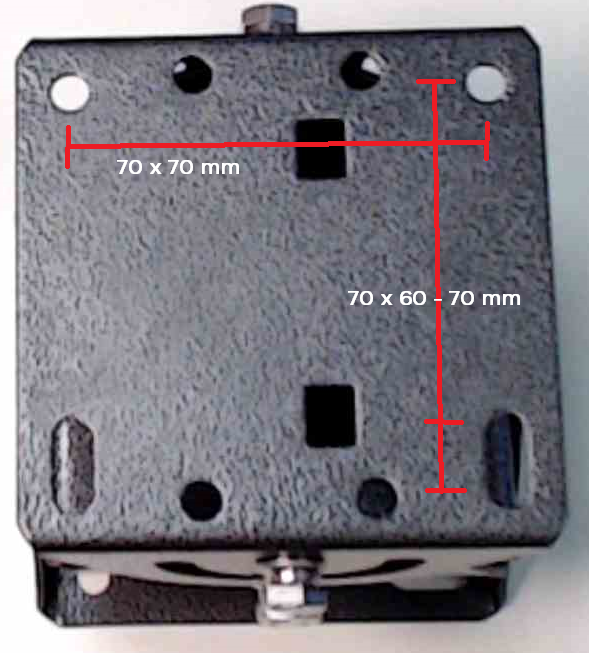

Fixation plate with nuts for the long screws that also can be used for wall mounting
Ankle between pole mounting and outdoor accessory, compatible with most of the outdoor routers and access points from Zyxel. Holes distance 7x7cm, lower holes vary from 6-7cm
