Zyxel IAP500BE — an industrial Wi-Fi 7 access point designed for Industry 4.0.

The Zyxel IAP500BE is an industrial-grade WiFi 7 (802.11be) access point engineered for demanding environments such as smart factories, warehouses, and Industry 4.0 deployments. Delivering multi-gigabit wireless speeds, ultra-low latency, and high reliability, it is designed to support mission-critical applications and real-time IoT systems. With a rugged fanless metal enclosure, extended operating temperature range, redundant power inputs, and flexible management via NebulaFlex Pro, the IAP500BE ensures stable, continuous wireless connectivity even in harsh industrial conditions.

• IAP500BE product page

• Documentation, Software & Firmware

Typical Use Cases

The Zyxel IAP500BE is ideal for environments where wireless connectivity is a critical part of operational continuity:

• Manufacturing plants and production lines
• Warehouses and logistics centers
• Industry 4.0 and smart factory deployments
• Industrial IoT (IIoT) sensors and controllers
• Automated Guided Vehicles (AGVs)
• Industrial cabinets and control rooms
• Sites where cabling is impractical or costly

Package Contents

The standard package of the Zyxel IAP500BE includes:

• Zyxel IAP500BE industrial access point
• Two detachable 2.4 GHz / 5 GHz external antennas
• DIN-rail mounting kit
• Quick Installation Guide

Not Included in the Box:

• DC power adapter
• PoE injector
• Alternative mounting accessories
• Optional or specialized external antennas

Key Technical Specifications

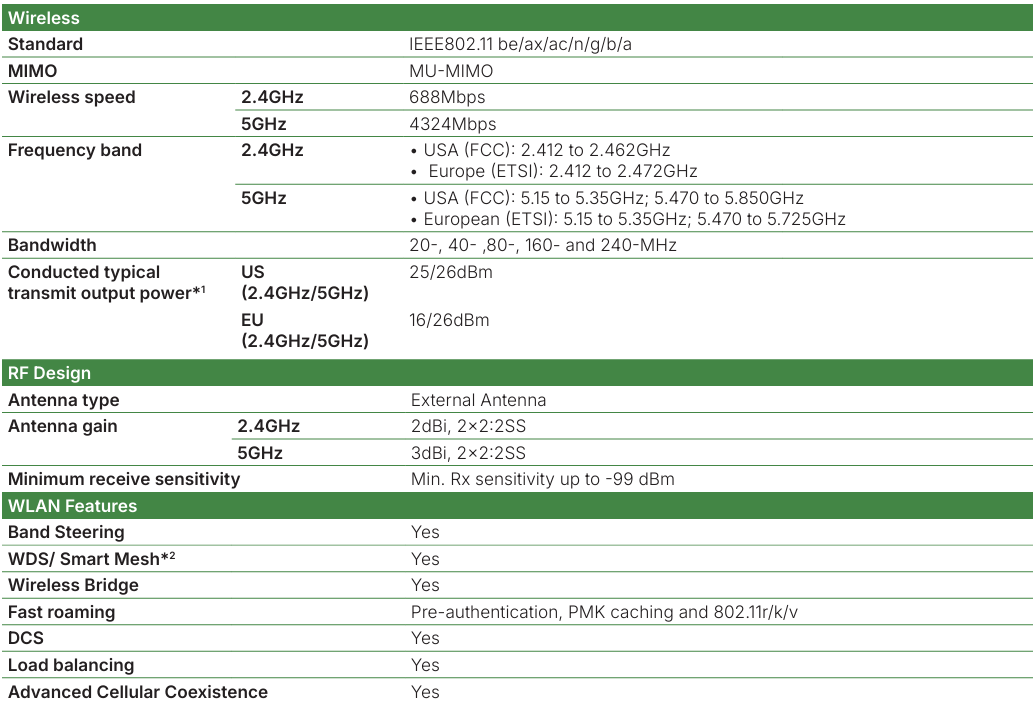

Wireless Capabilities

• Wireless standard: IEEE 802.11be (WiFi 7)
• Backward compatibility: 802.11ax/ac/n/g/b/a
• Frequency bands: 2.4 GHz and 5 GHz
• MIMO: 2×2 MU-MIMO
• Maximum data rates:
  • 2.4 GHz: up to 688 Mbps
  • 5 GHz: up to 4324 Mbps
• Channel bandwidth: up to 240 MHz

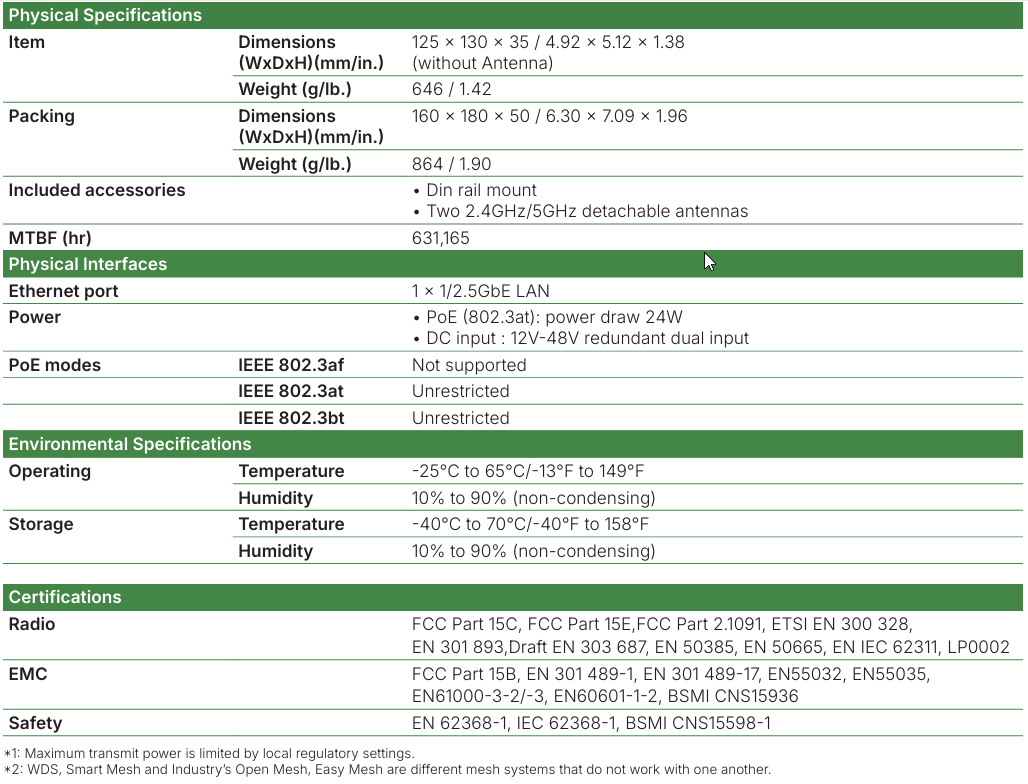

Interfaces and Power

• Ethernet: 1 × 1/2.5GbE LAN port
• Power options:
  • PoE+ (IEEE 802.3at), power consumption up to 24 W
  • Redundant dual DC input (12–48 V) with reverse polarity protection

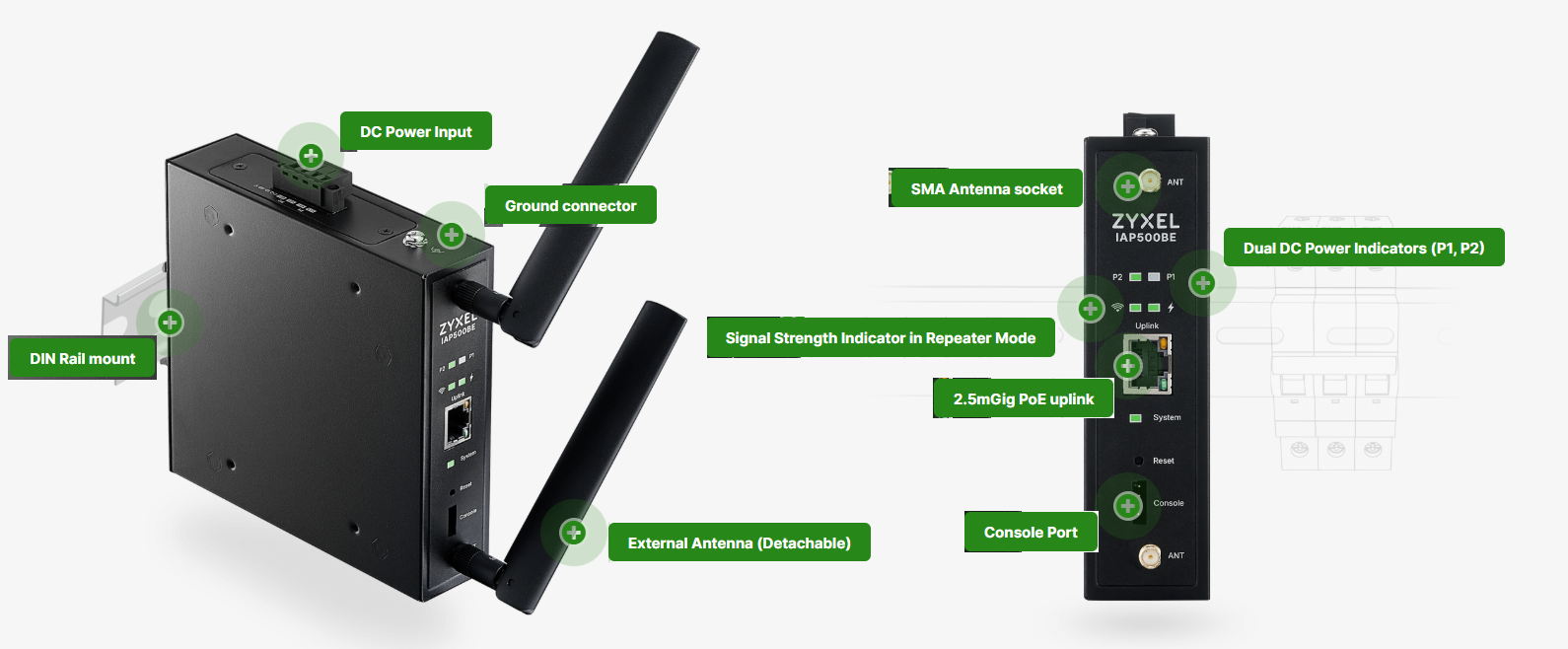

Industrial Design

• Fanless metal enclosure
• Operating temperature: –25°C to +65°C
• Protection levels:
  • 6 kV lightning protection
  • 15 kV ESD protection

Key Features

WiFi 7 with Multi-Link Operation (MLO)

WiFi 7 introduces Multi-Link Operation (MLO), allowing devices to transmit and receive data across multiple frequency bands simultaneously. This significantly reduces latency, increases throughput, and improves reliability—critical for real-time industrial applications such as robotics, AGVs, and automation systems.

NebulaFlex Pro Management

With NebulaFlex Pro, the IAP500BE offers unmatched deployment flexibility:

• Standalone mode for local management
• On-premises controller-managed mode
• Cloud-managed mode via Nebula Control Center (NCC)

Users can switch between modes without additional licensing costs, protecting long-term network investments.

Industrial-Grade Reliability

The IAP500BE is engineered to withstand harsh industrial conditions. Advanced RF filtering and interference mitigation ensure stable wireless performance even in environments with heavy machinery or dense 4G/5G signals. The fanless design enhances reliability while reducing maintenance requirements.

Smart Mesh and Wireless Bridge

• Smart Mesh enables flexible wireless expansion in locations where cabling is unavailable
• Wireless Bridge supports high-throughput point-to-point or point-to-multipoint connections between buildings or remote areas
