How to Enable Smart Mesh on Zyxel USG LITE 60AX

The Zyxel USG LITE 60AX is a modern Wi-Fi 6 security router that supports Smart Mesh, a technology designed to extend wireless coverage seamlessly without complex cabling. Smart Mesh operates within the Zyxel Nebula ecosystem, allowing the security router and compatible Nebula access points to form a unified, intelligent wireless network.

What Is Smart Mesh?

Smart Mesh is a Zyxel technology that enables Nebula-managed devices—such as the USG LITE 60AX and supported access points—to automatically create a wireless mesh network. The system dynamically selects the optimal wireless path between nodes, providing:

• Flexible Wi-Fi coverage expansion without additional Ethernet cabling

• Seamless roaming for wireless clients across the network

• Automatic path and channel optimization to maintain stable performance

Smart Mesh is especially useful in offices, multi-floor buildings, and environments where traditional cabling is impractical.

Prerequisites Before Enabling Smart Mesh

Before enabling Smart Mesh, ensure the following requirements are met:

1. The USG LITE 60AX and access points are registered under the same Nebula organization and site

2. At least one Nebula-supported access point is available, with Smart Mesh support

3. All devices show an “Up to date” configuration status in Nebula Control Center

Once these conditions are satisfied, you can proceed with the configuration.

Step-by-Step Guide to Enable Smart Mesh

1. Enable Smart Mesh on the USG LITE 60AX

1. Log in to the Nebula Control Center (NCC) via web interface or the Nebula mobile app.

2. Navigate to:

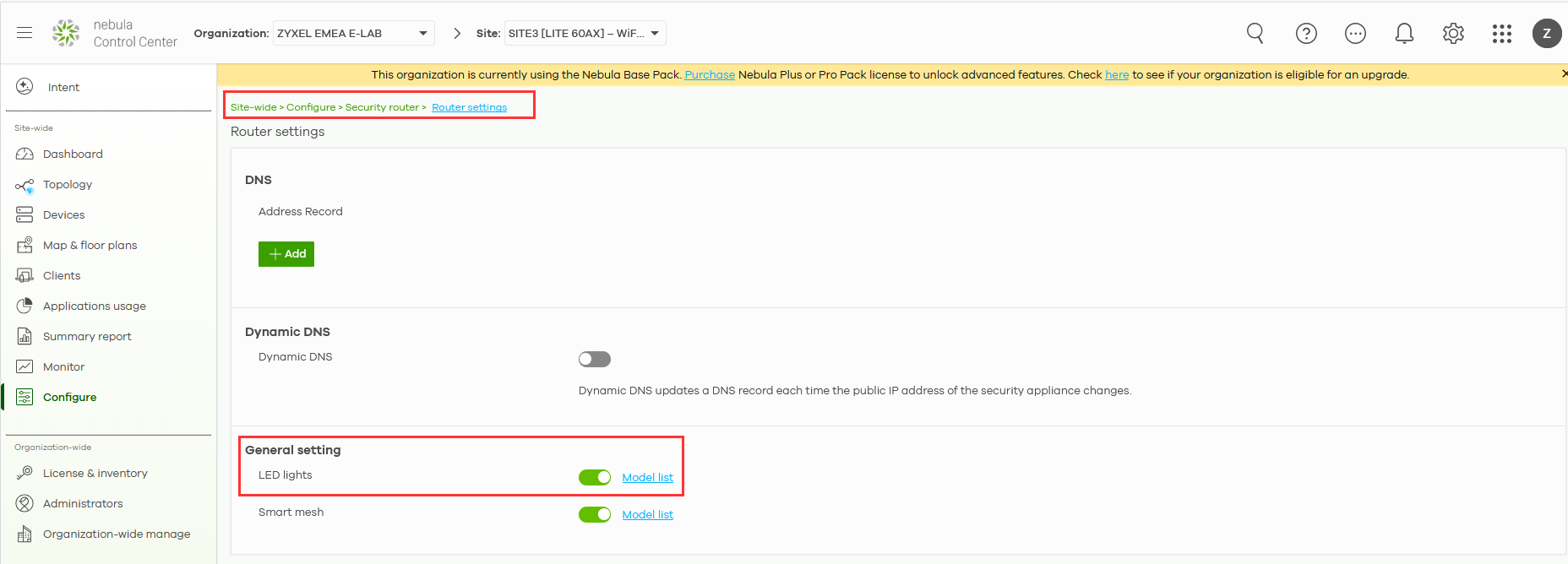

   Site-wide > Configure > Security Router > Router settings

3. Locate Smart Mesh under General settings and enable the option.

4. Click Save to apply the configuration.

Enable Smart Mesh on the Access Point

1. In NCC, go to:

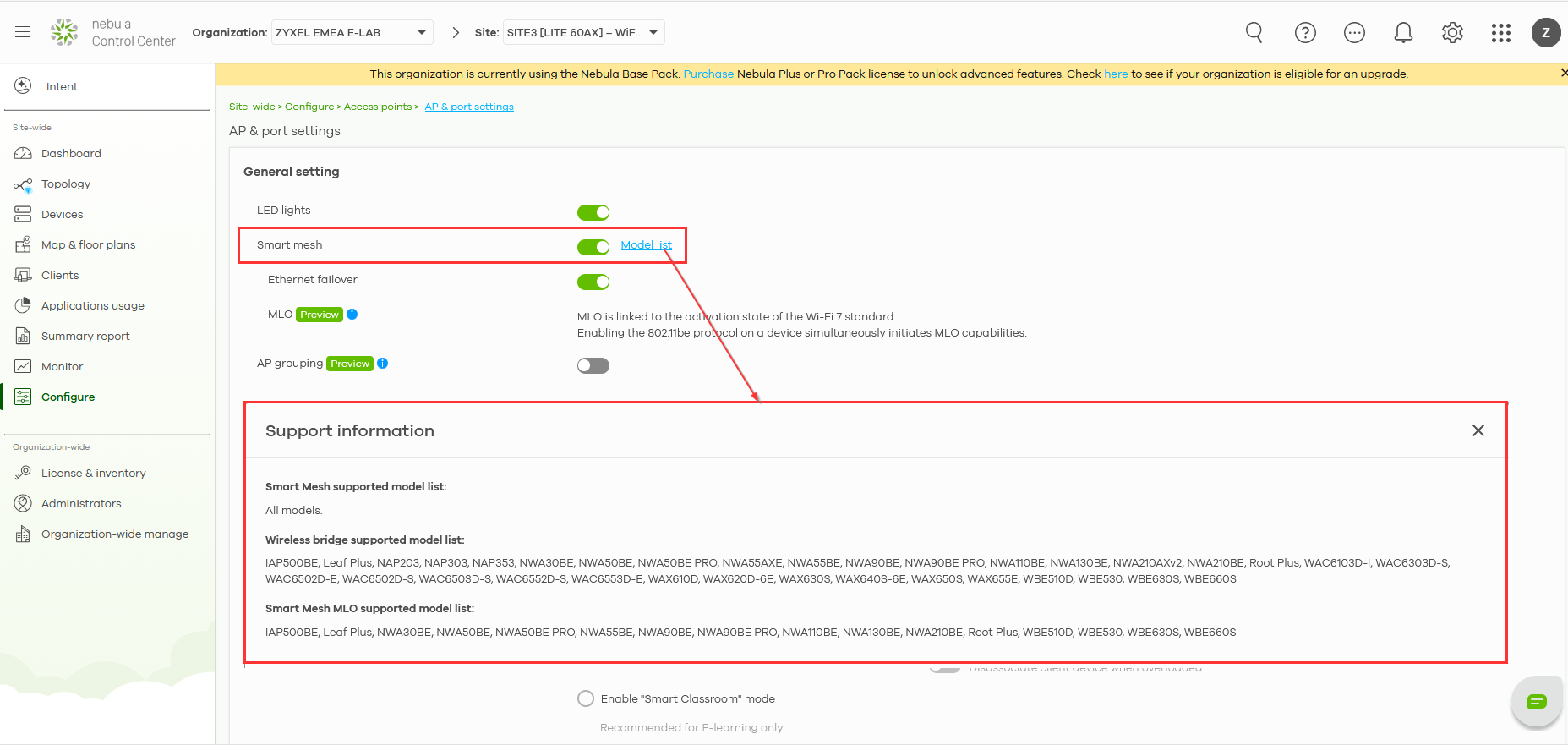

   Site-wide > Configure > Access Points > AP & port settings

2. Enable Smart Mesh on the selected access point.

3. Save the configuration.

Initial Wired Connection (Mandatory)

For the initial Smart Mesh pairing:

1. Connect the access point to the USG LITE 60AX using an Ethernet cable.

2. Wait until both devices show “Up to date” status in Nebula Control Center.

This wired connection is required only for initial provisioning.

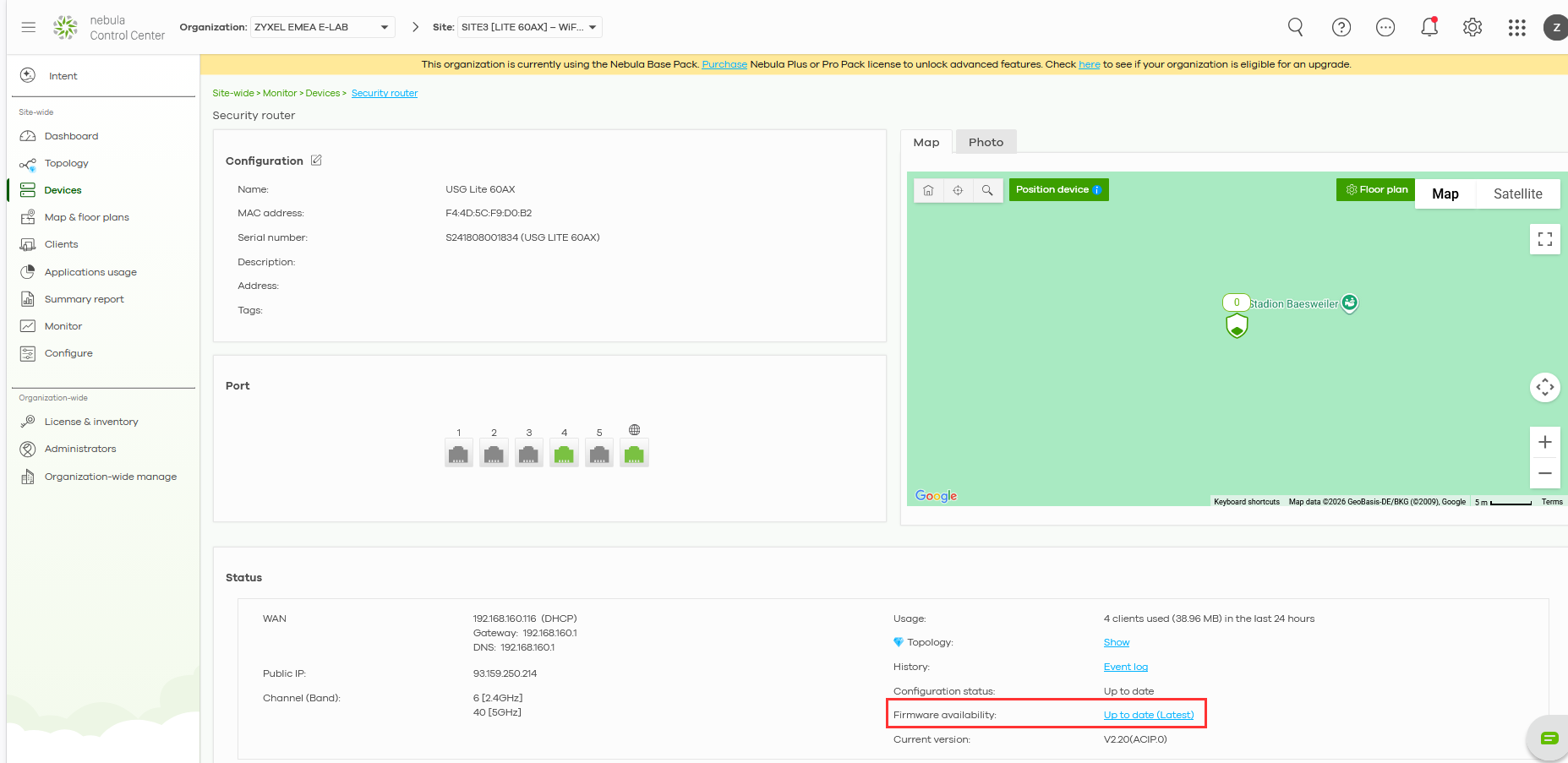

Before proceeding, please do verify that the configuration statuses for both the USG LITE 60AX and the AP are shown as "Up to date".

Deploy the Access Point as a Mesh Repeater

1. Disconnect the Ethernet cable from the access point.

2. Move the access point to the desired location where coverage extension is needed

   • Recommended distance: 10–15 meters with minimal obstructions

3. Power on the access point. It will automatically establish a 5 GHz wireless mesh uplink.

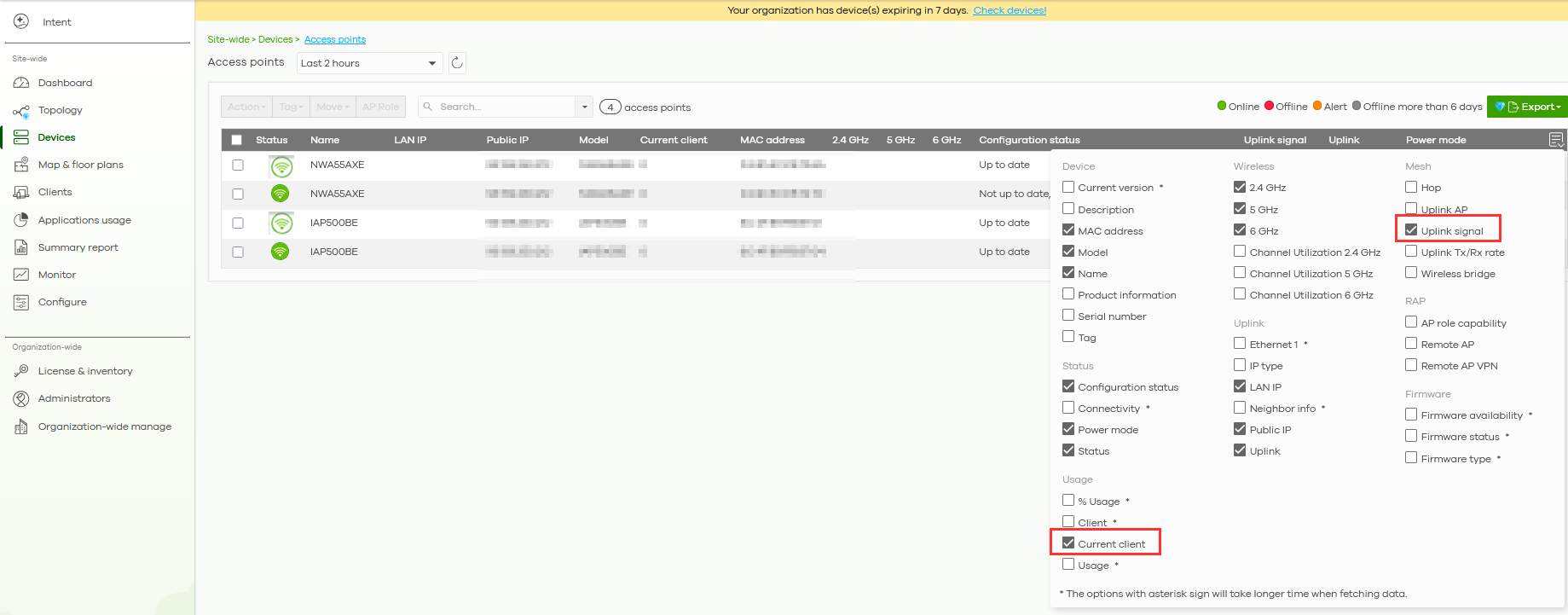

4. Verify the mesh status in NCC:

   • Uplink Band

   • Signal Strength (recommended better than −75 dBm)

Configure a SSID for the Repeater AP

Have clients try to associate with this Repeater AP and browse the Internet to test the user experience over the mesh network.
