USG/ATP/VPN - How to download / backup the running configuration

In some cases a backup of the currently running configuration (config) should be created in order to have a backup available in an emergency or the support will ask you for analysis purposes about the running configuration (startup-config.conf).
This guide briefly shows where you can find the current configuration and how you can download it.

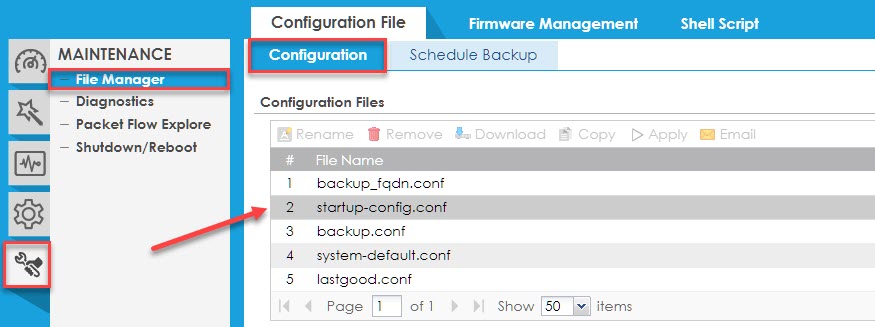

Login to the device and navigate to

Maintenance > File Manager > Configuration




The current configuration is saved on the device under the name

startup-config.conf


The configuration for the factory settings is saved under

system-default.conf

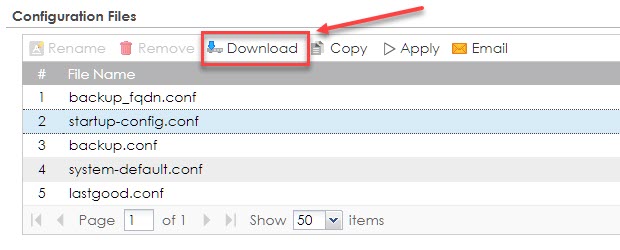

The configuration can be downloaded via the "Download" button.




A configuration file can be uploaded via Upload Configuration File

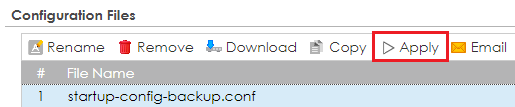

Click on Apply on the desired configuration file to apply it to the firewall




More about the different configuration files on the firewall devices can be found here:

USG / ATP Series - Explaining the device partitions and the different types of configuration files
