Nebula [Orchestrator] - Configure Nebula VPN Orchestrator

This article will take a closer look at the new VPN Orchestrator in Nebula. Zyxel VPN Orchestrator is designed to simplify the deployment and management of VPN (Virtual Private Network) connections for businesses and organizations. Let's consider an example of when Zyxel VPN Orchestrator can be an important assistant. Let's say you have 2 regions with 3 offices in each region. You want the offices to be connected via VPN, but only in your region. In this case, we can split the VPN into two regions.

Please note that the VPN Orchestrator is not a free Option in Nebula!

How does Zyxel VPN Orchestrator work?

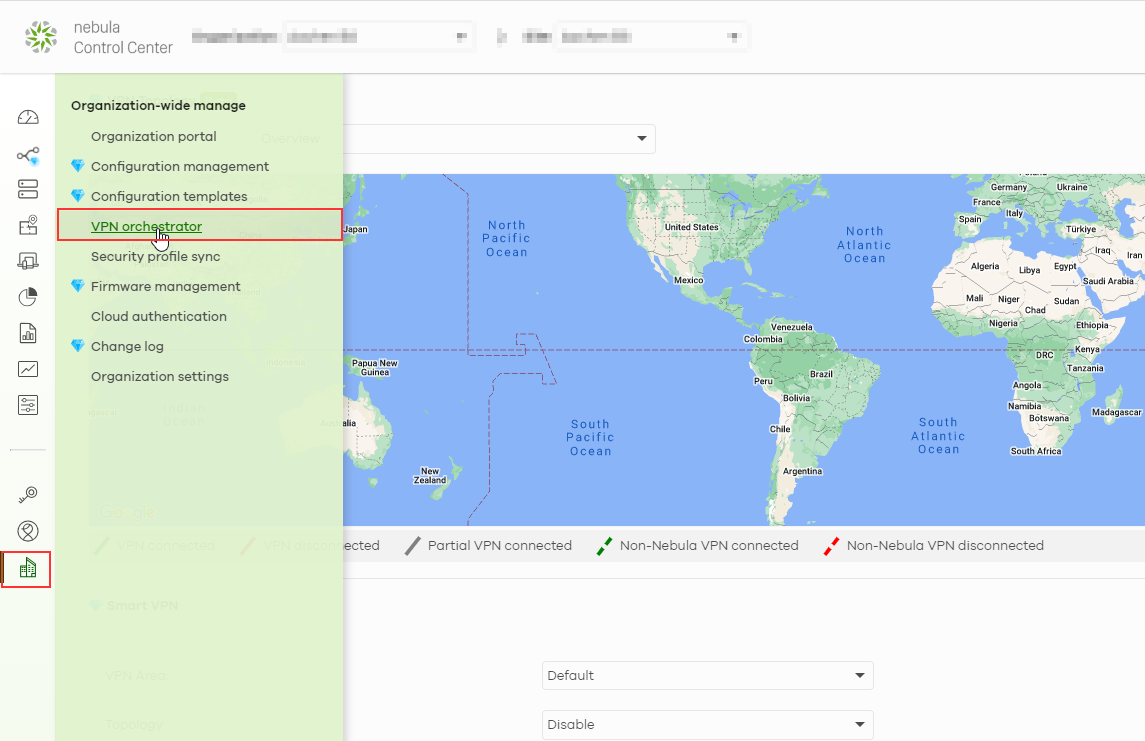

  • Go to "Organisation-wide manage" -> "VPN Orchestrator"

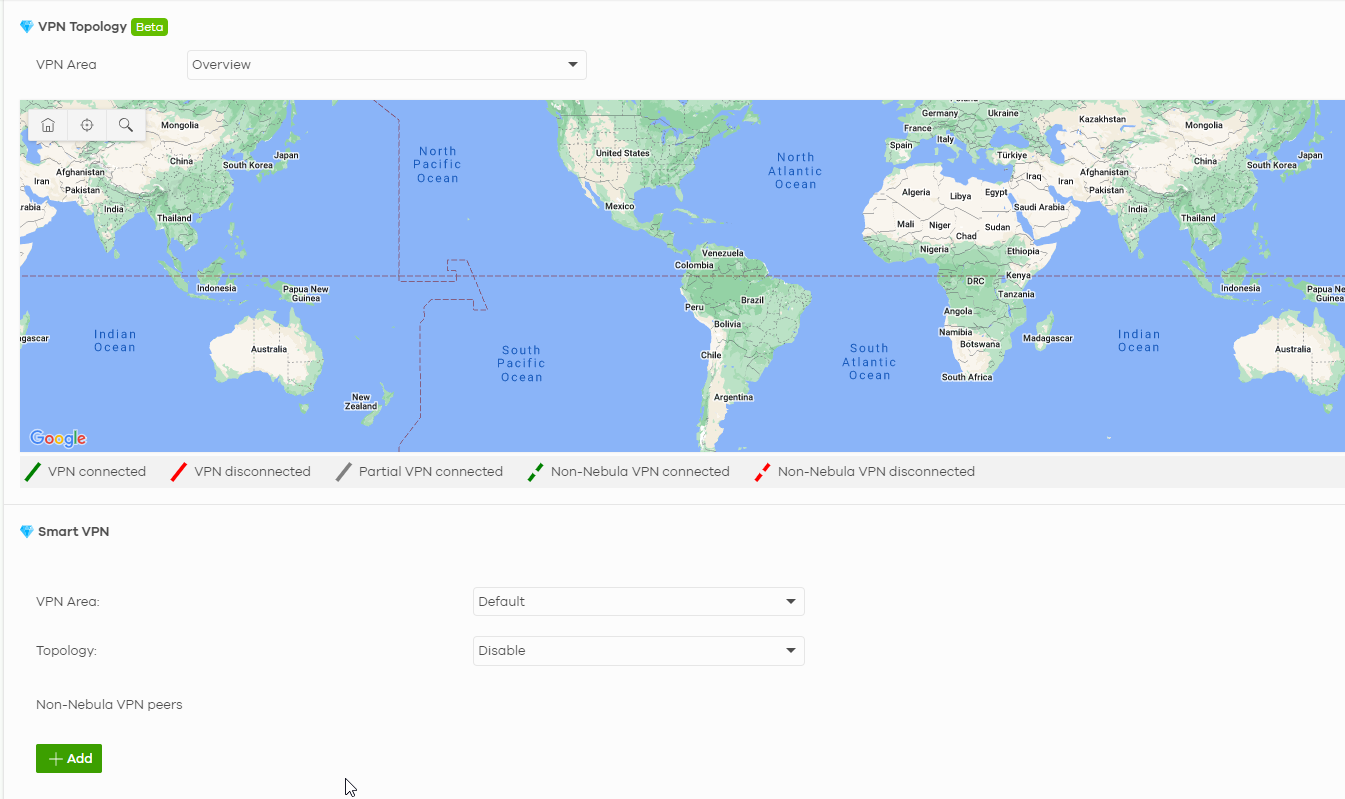

  • Then you will be presented with the VPN Orchestrator screen

  • You can create a Site-to-Site or Hub-and-spoke VPN in literally four click

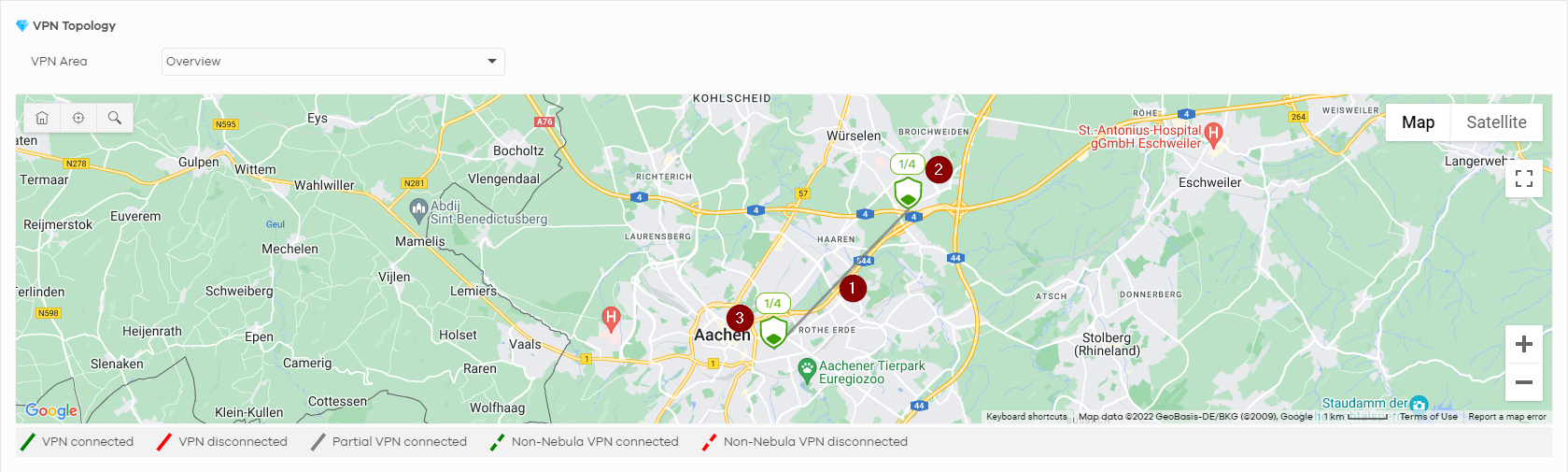

  • If you have set the Gateway's location, you will also get the topology overview

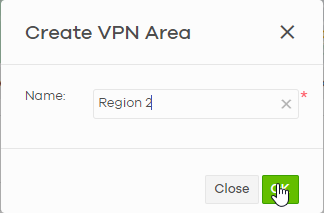

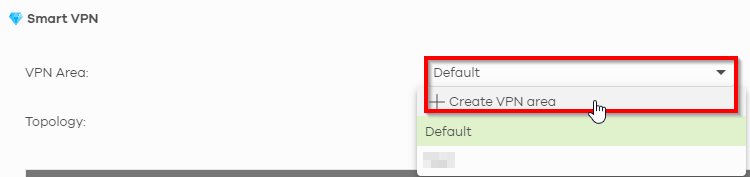

  • If you want to set up multiple regions, go to "VPN Area" and add our two regions.

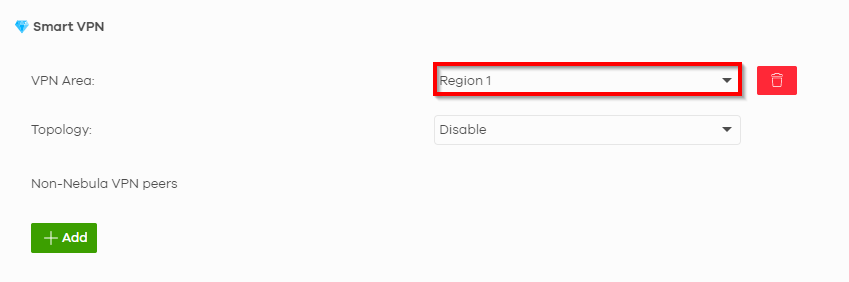

  • Now you can select the region we want to set up

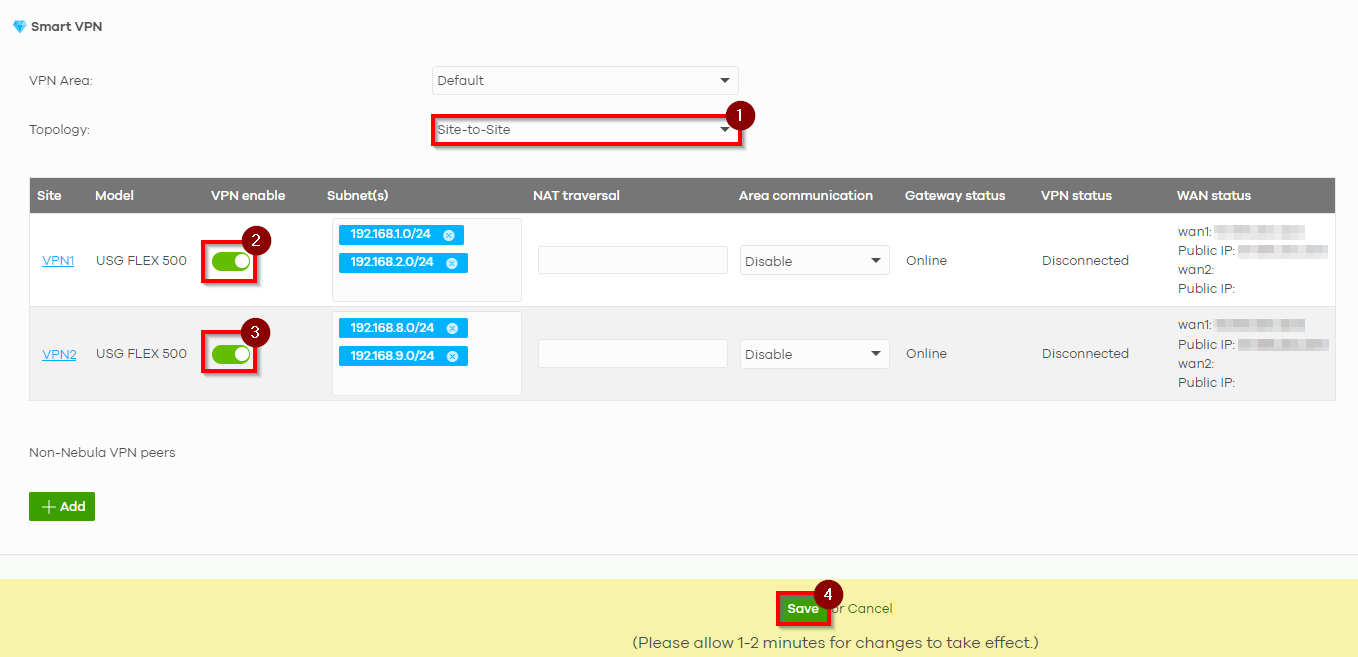

  • Then we need to follow the "simple" Site-to-Site VPN steps. We redo those Steps for the two Regions.
