This article describes changes to the console cable type for the new Zyxel Firewall H series. This article also describes some of the features of the light indication.
Disclaimer!
This article offers a general overview of the series and may not apply uniformly to every model, software/firmware version. Prior to purchasing or using the device, please consult the model/version-specific documentation or reach out to technical support for accurate information.
Hardware - Console Cable
To connect to the USH FLEX H Series with the new uOS operating system, we use the standard RJ-45 to DB-9 Rollover Cable
[Change] - Use general console cable pinout, and it is not compatible with ATP/USG FLEX series. So if you have problems connecting to the Firewall using the console cable, please make sure you are using the correct cable.
Hardware - LED Indication
|
PWR/SYS (Power/System) -Green on - Red PoE (Power over Ethernet) - Green - Amber USER Event (User defined) - Green - Amber - Green blinking
|

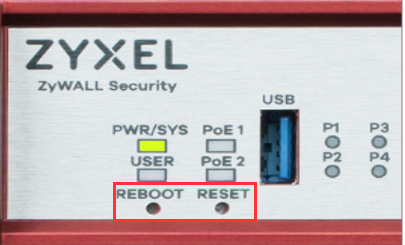

Hardware - Button Behavior
|
REBOOT - Press to reboot the device RESET - Press more than 7 seconds to reset to system default. Press more than 30 seconds to return to factory default.
Please note: that all settings will be deleted so a systematic backup of the configuration will help to avoid loss. |
