Zyxel Switch [Configuration File] - How to Backing Up and Restoring Configuration Files on your ZyXEL Switch

In this guide, we will walk through the process of backing up and restoring the configuration of your ZyXEL Switch, specifically focusing on the XMG1930-30HP model. Ensuring the integrity and availability of network configurations is crucial for maintaining network reliability, security, and efficient operations. By following these steps, you can safeguard your network settings and quickly recover from any unforeseen events.

Disclaimer!  
This article offers a general overview of the series and may not apply uniformly to every model, 
software/firmware version. Before purchasing or using the device, please consult the 
model/version-specific documentation or reach out to technical support for accurate information

Backing up the configuration of Zyxel switches plays a key role in ensuring the security and manageability of your network infrastructure. Here are a few reasons why it is essential:

Disaster recovery: Backup allows you to quickly restore the switch to service in the event of a failure or abnormal situation. If a failure occurs or the device loses its configuration, a backup will allow you to quickly restore the settings.

Updates and Configuration Changes: Before upgrading software (firmware) or making configuration changes, a configuration backup allows you to maintain the operational state of the device. In case of a failed update or unexpected problems after changes, you can quickly revert to the previous stable configuration.

Version control: Backups allow you to save multiple versions of a configuration. This is useful for tracking changes and reverting to previous versions if new configurations have caused problems or undesirable results.

Data Security: The switch configuration can contain important network infrastructure information such as security settings, VLANs, routing, etc. Backup protects this information from loss or corruption.

Simplify device migration and replacement: When replacing a switch with a new device or migrating to a different infrastructure, backup allows you to quickly configure the new device with the same settings as the old device.

Follow these steps to back up your ZyXEL Switch:

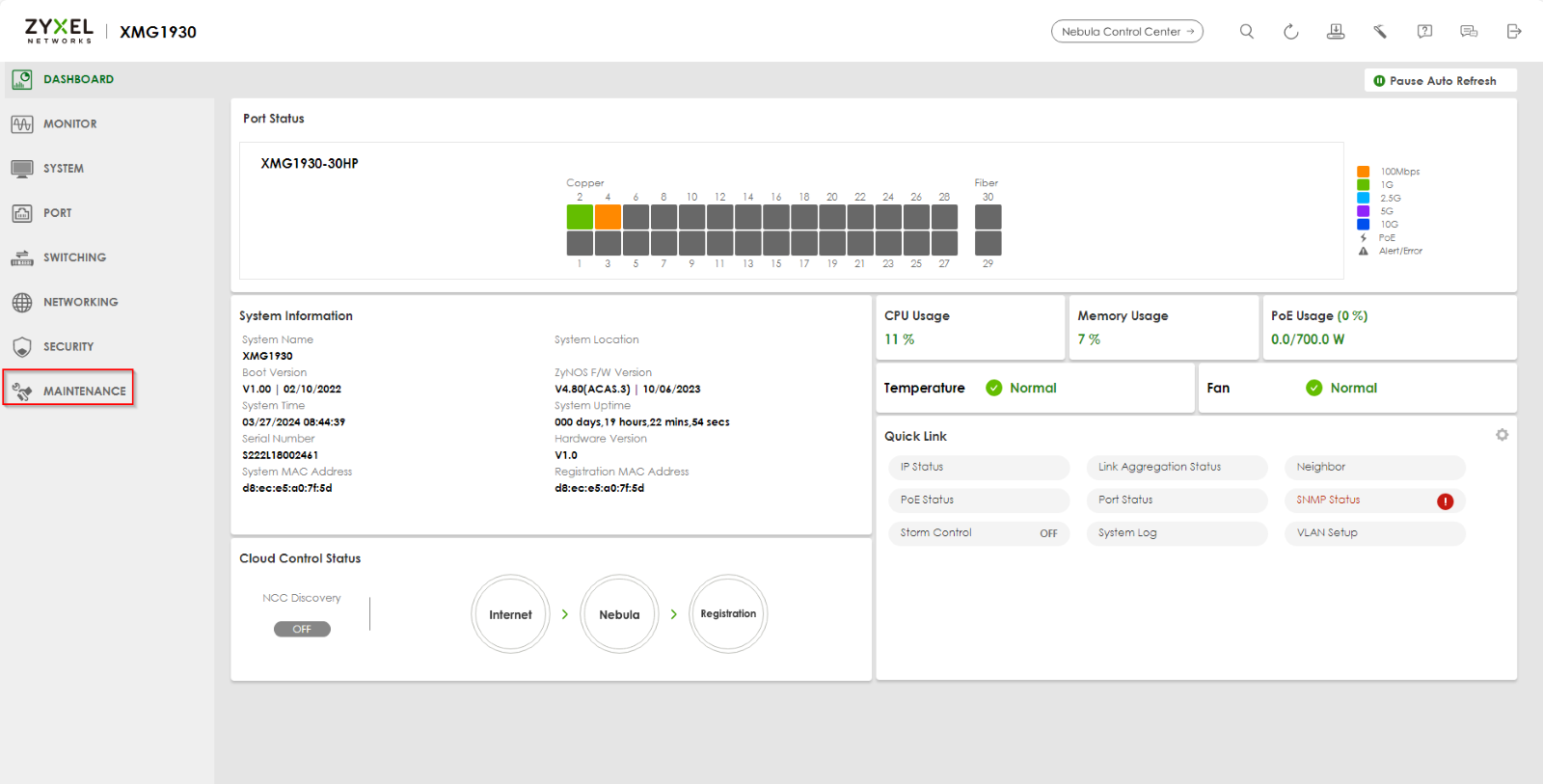

• Go to the Web GUI of your Switch
• Click on the "Maintenance" icon conveniently located on the sidebar

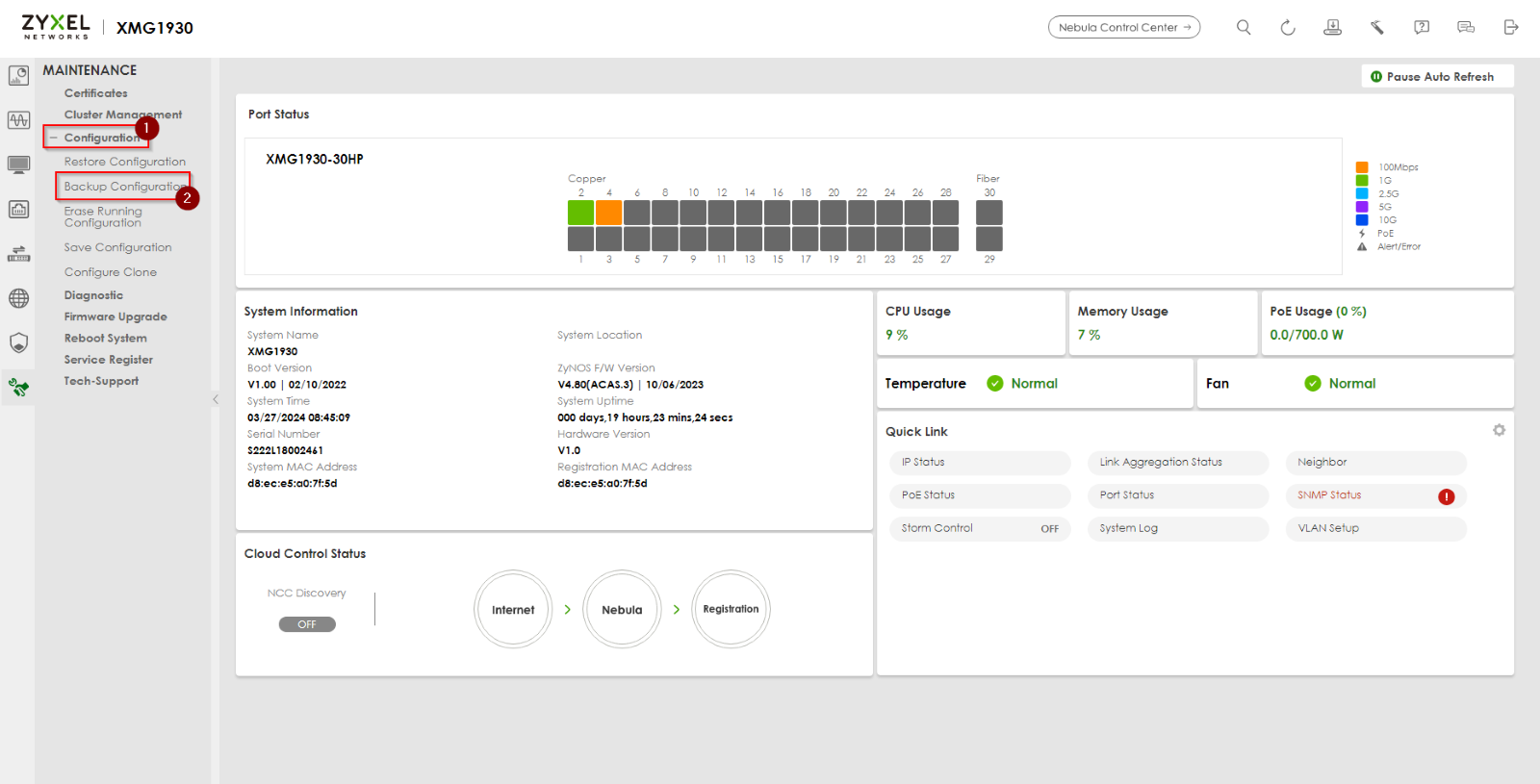

• Click on "Configuration"
• Navigate to "Backup Configuration"

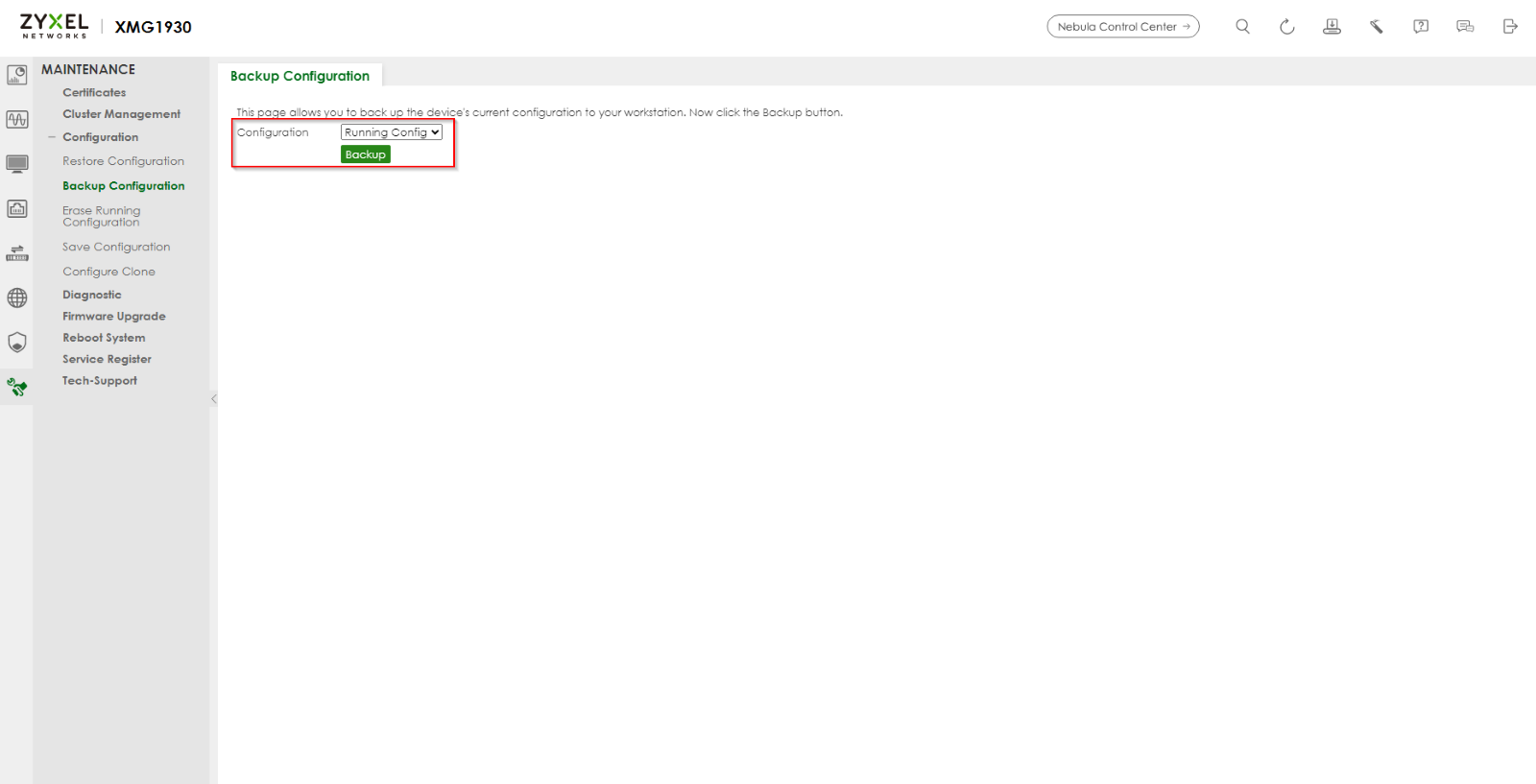

This is where you can initiate the backup process for your configuration:

Select the configuration you wish to back up for your ZyXEL Switch. Choose from Running Configuration, Configuration 1, Configuration 2, or Custom Configuration.

Follow these steps to restore your ZyXEL Switch:

• Go to the Web GUI of your Switch
• Click on the "Maintenance" icon conveniently located on the sidebar

• Click on "Configuration"
• Navigate to "Restore Configuration"

Upon reaching the "Restore Configuration" screen, you'll be prompted to browse your PC for the desired configuration file. Once selected, proceed by clicking "Restore." Following this process, the switch will operate based on the restored configuration.

Should you encounter any difficulties or have further questions, do not hesitate to consult the User's Guide for additional assistance.
