This article provides a clear, step-by-step guide for powering on and accessing the web interface of Zyxel’s FWA series devices — specifically the FWA510 models. Whether you’re setting up an indoor or outdoor unit, this guide will help ensure proper SIM card installation, initial network connection, and access to the device’s configuration panel. Use this as a starting point to configure internet settings, Wi-Fi, firmware updates, and more, directly from the built-in web interface.

• FWA510 - Full User's Guide
• FWA510 - Quick Start Guide
• FWA510 - Firmware and Datasheet

Design and bundling

The FWA510 comes with an internet cable and power supply, while the external antenna and SIM card are not included.

Setting up the device

First, please follow the steps outlined in the quick start guide and carry out each step as shown.

• Make sure the Zyxel Device is turned off.

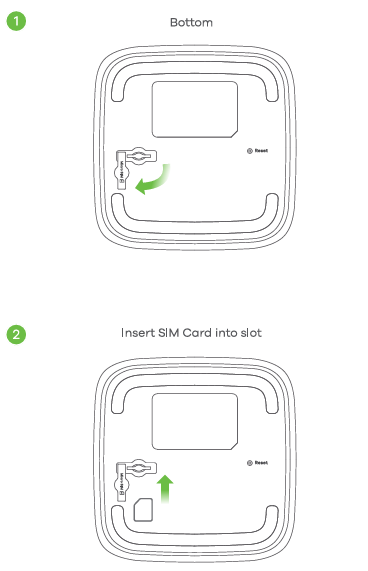

• On the bottom of the Zyxel Device, open the micro SIM card slot cover.
• Insert the micro SIM into the SIM card slot (If the SIM card's PIN code is enabled, either enter it later in the device’s web interface or disable PIN verification beforehand).

• Put the cover back in place.

  Note: If you are using a nano-SIM card, insert it securely into the micro-SIM card slot to avoid possible damage to the device.

Accessing the WEB Configurator

- Setting up the device- Accessing the web configurator- Initial WLAN configuration- Troubleshooting the internet connection

The Zyxel FWA510 is a 5G NR router that supports wireless and wired connections. To log in to the standalone management interface, use the access credentials printed on the back of the device.

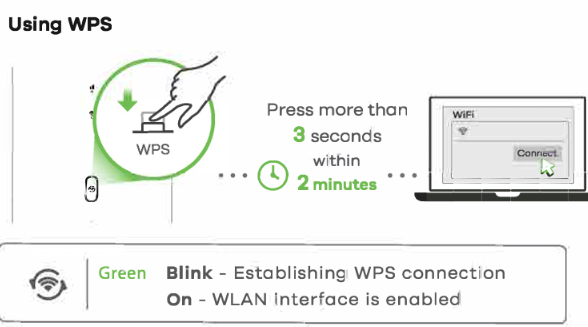

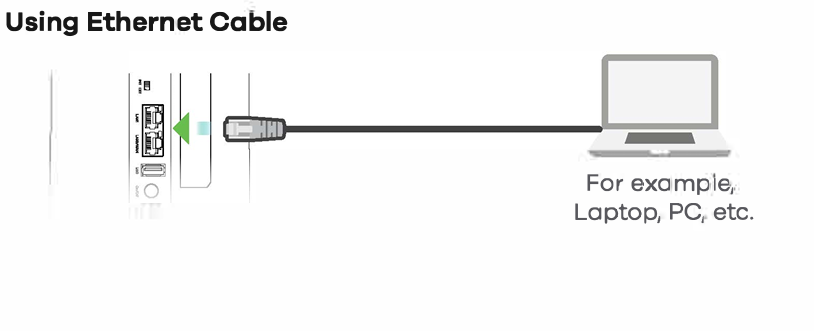

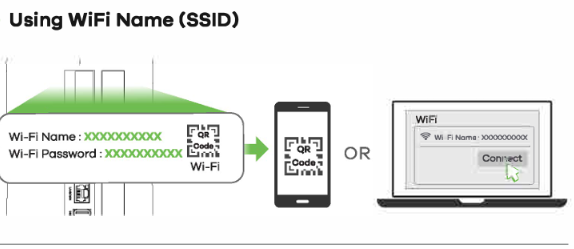

To connect to the FWA510, use WPS, select the WiFi SSID manually, or connect an Ethernet cable.

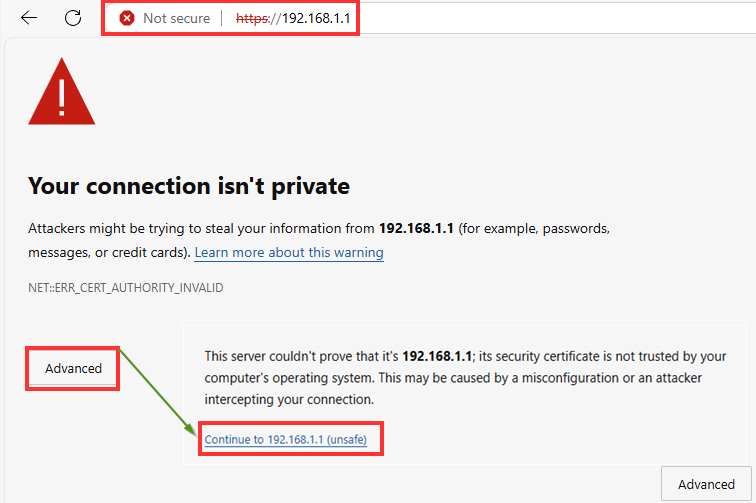

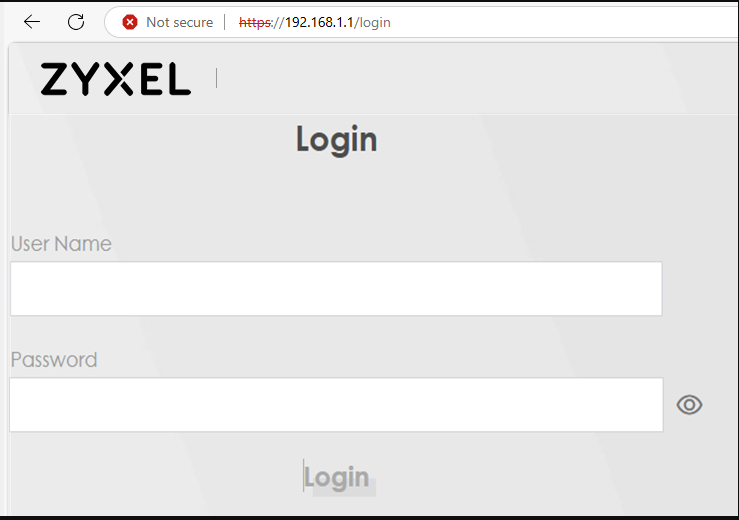

To access the router, open a browser and navigate to 192.168.1.1 (this IP is also listed on the device's sticker or can be found through your computer's network settings).

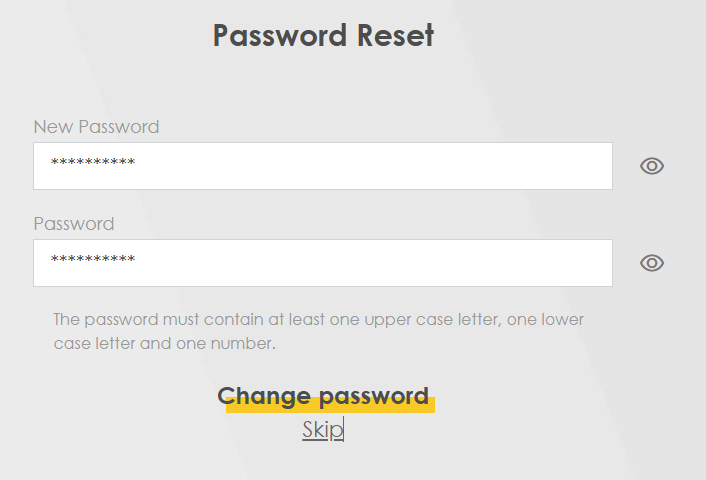

On the first step, the system will ask you to change the default password; this action is mandatory.  Change the password and log in to the device's web GUI with the new password.

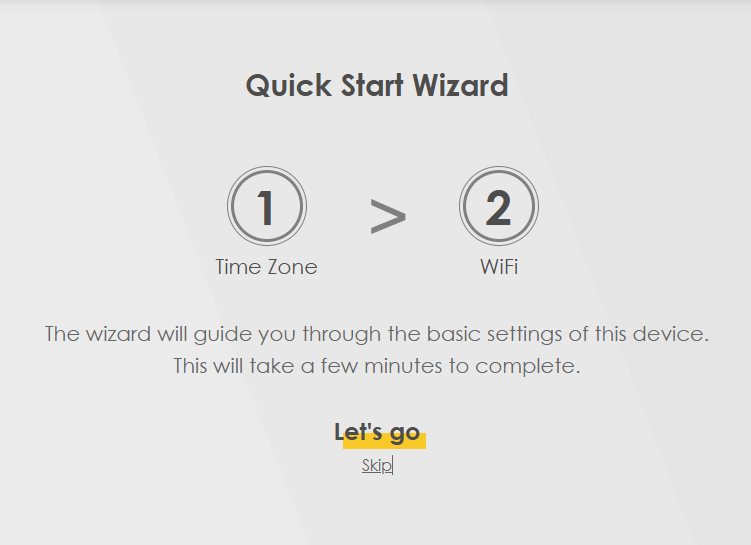

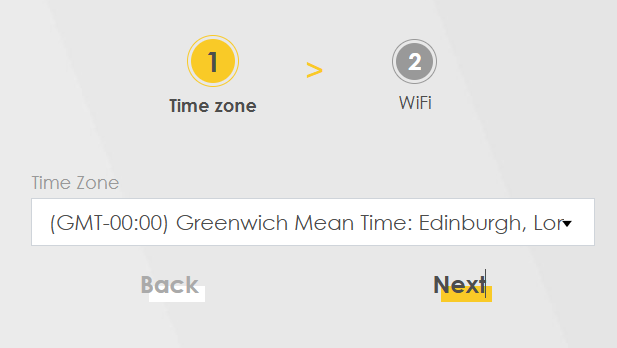

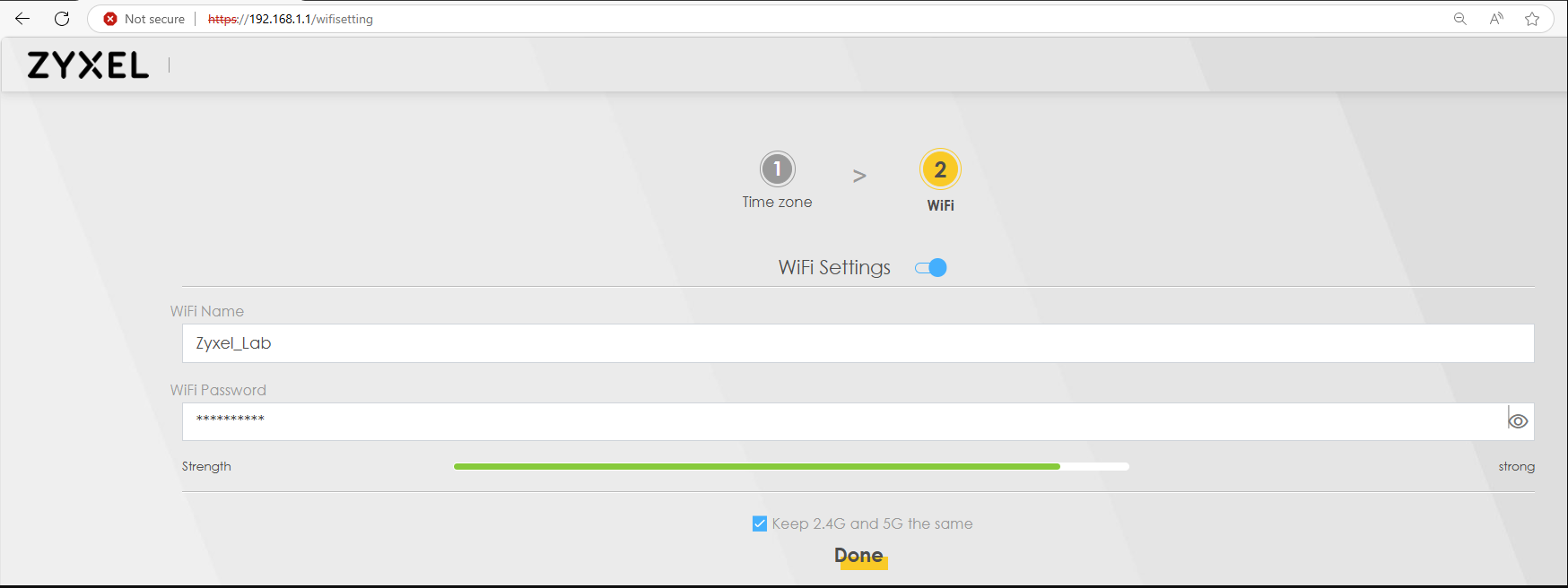

Next, follow the prompts and use the wizard to perform basic device settings, such as setting the correct time search, renaming the SSID, and changing the Wi-Fi password.

That’s it - the basic setup is complete, and you can now access the internet via Wi-Fi or a wired connection.

Add FWA505 under Nebula Control

• How do you add FWA510 under Nebula control?
• What features and what benefits will you get afterwards?
• Full instructions are available here:  Zyxel FWA Series [Nebula] - Add Mobile Router FWA Series to Nebula
