This article quickly shows how to configure IKEv2 with MS-CHAPv2 on our USG and Zywall devices.

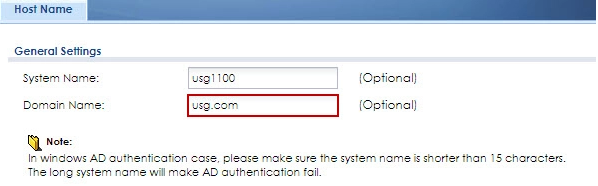

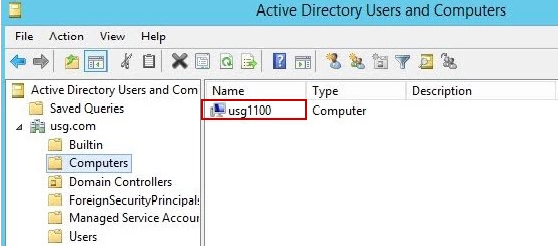

1. The USG1100 must join an AD domain.

In the following example, domain name is usg.com.





2. Go to CONFIGURATION > System > DNS > Address/PTR Record and add a PTR record.

In this example, the IP of AD server is 10.214.48.71.


3. Navigate to AAA Server > Active Directory > AD object.

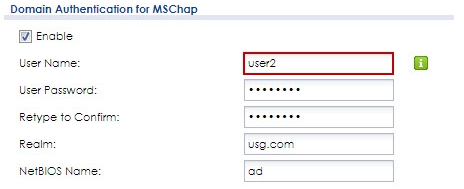

Configure Domain Authentication for MSChap.

The user in this field should have “domain admin” privilege on your AD server.

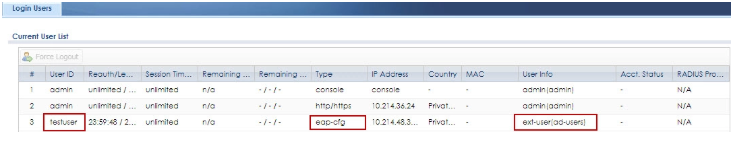

>>> IKEv2 is established with AD account successfully.



KB-00259
