This article describes how to set up an L2TP IPSec VPN with IPSec PSK on a VPN2S.
Setup
Navigate to
Configuration> VPN> IPsec VPN > Default_L2TP_VPN_GW
Default_L2TP_VPN_Connection > Edit

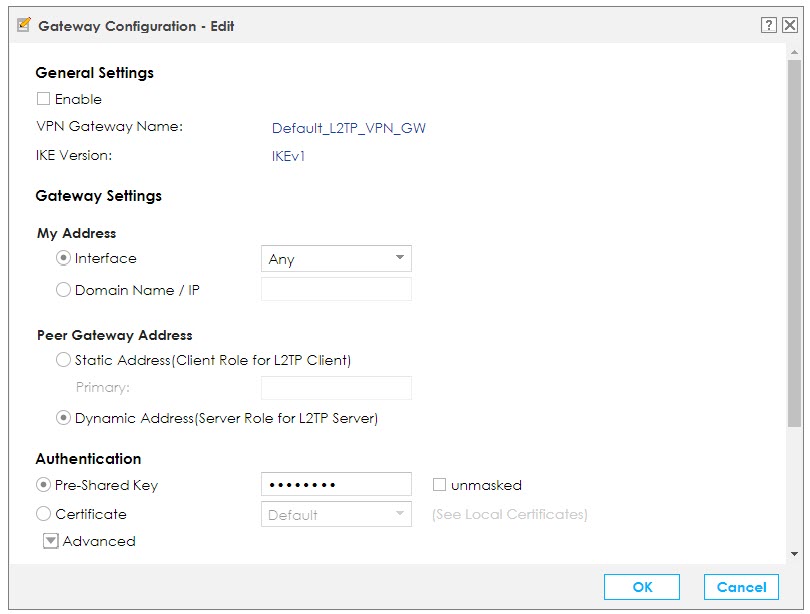

enable both rules and fill the pre-share key on
Default_L2TP_VPN_GW

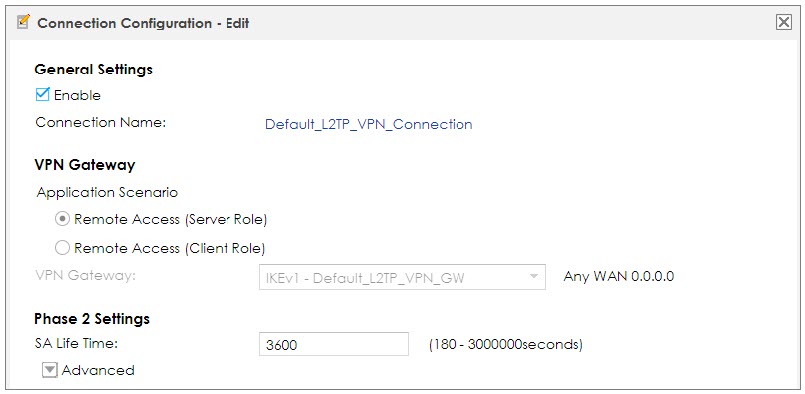

Create the Connection Configuration for L2TP under
Configuration> VPN> IPsec VPN > Default_L2TP_VPN_Connection

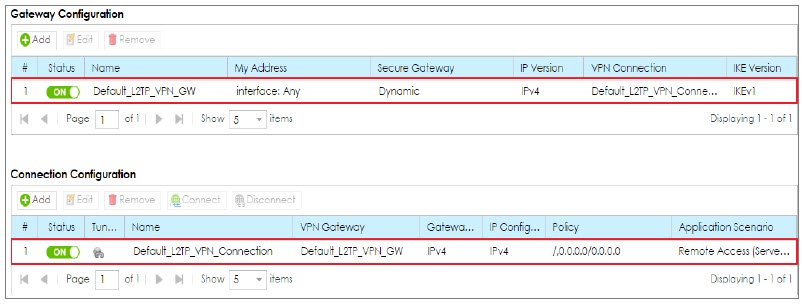

Set both Gateway and Connection to Status "ON"

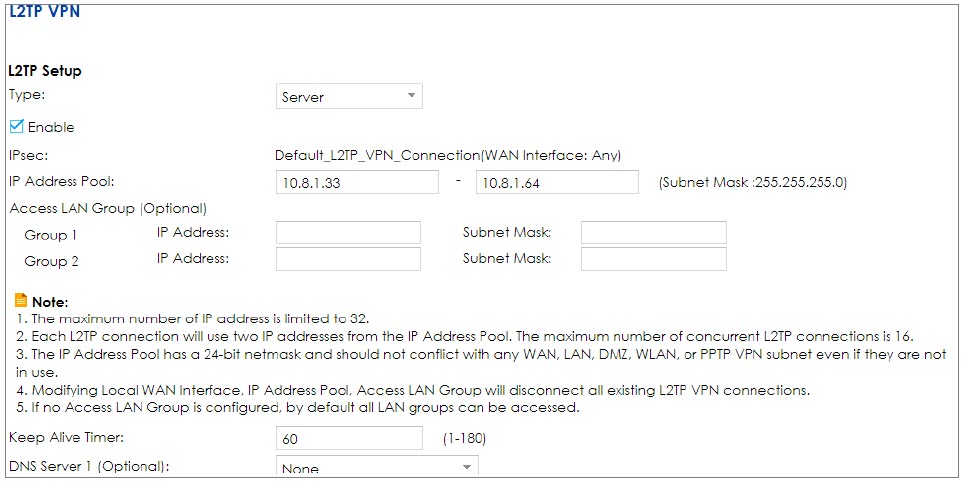

Go to the menu L2TP VPN, select the type Server and activate the tick-box to enable the feature.
Enter the IP addresses which will be assigned to the l2tp clients on the IP Address Pool.
Now all configuration on the VPN2S is done, it is time to setup L2TP VPN on a Windows client, just have a look at the following article:
L2TP-Setup for Windows built-in client
