Zyxel NBG7510 [WIFI Router] - Quick Start and firmware update

Updated August 15, 2024 12:50

Serhii Boiarynov

The Zyxel NBG7510 is a feature-rich Wi-Fi 6 (802.11ax) router designed to provide enhanced connectivity for modern households and small offices. It offers advanced networking capabilities, including faster speeds, improved efficiency, and robust security, making it ideal for environments with multiple devices and high bandwidth demands.

Key Features

Next-Gen WiFi 6 standard, Ultra-fast 1.8 Gbps WiFi speed
Increased capacity and efficiency with MU-MIMO & OFDMA to efficiently allocate
channels while communicating with multiple devices simultaneously
Achieve strong, reliable WiFi coverage with Beamforming & 4 high-gain antennas
Easy management with Zyxel Rover App & web interface
Provides your kids with a safe online experience with Parental Control
Supports WPA3 security

Quick Start

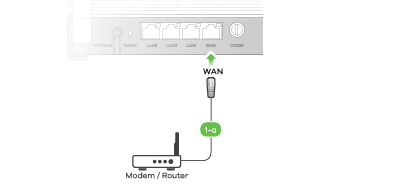

Use an Ethernet cable to connect the WAN port to a gateway modem.

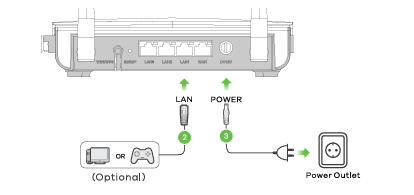

Connect a computer to the LAN port using a yellow Ethernet cable (optional).
Connect the power cable to the Zyxel Device.

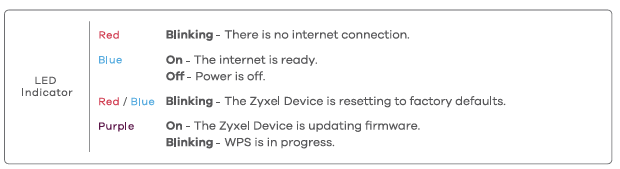

LED Indicator

WIFI Connection

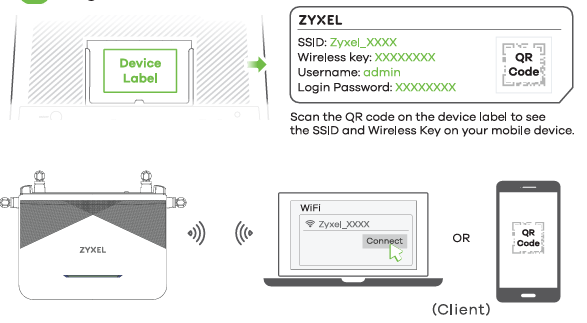

Use the SSID and Wireless key on the device label to connect wirelessly to the Zyxel NBG7510

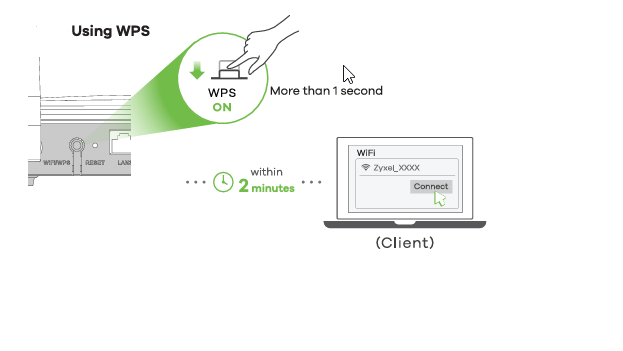

Press the WPS button until the LED is blinking in purple.
Press the WPS button on the client. If the WPS method fails, use the SSID and Wireless Key to set up a WIFI connection

Start Wizard

Open a web browser and go to http://192.168.123.1.

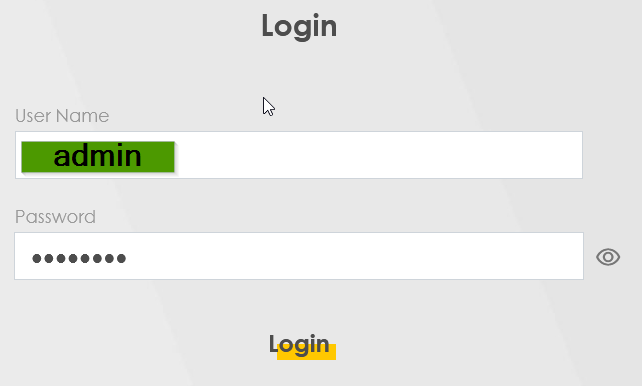

Enter the default Username (admin) and admin Login Password on the device label), and then click Login,

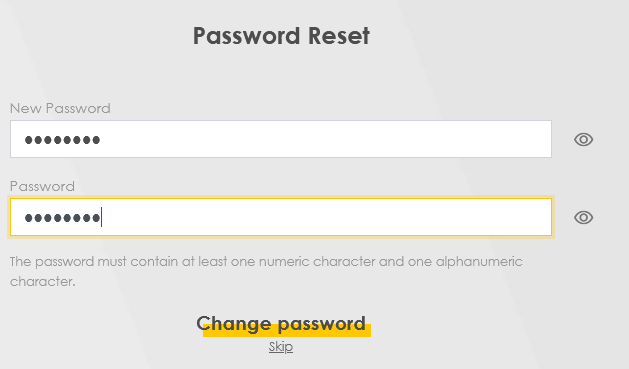

Follow the wizard prompts to complete the setup and the first step is "Password Reset". Please set a strong password.

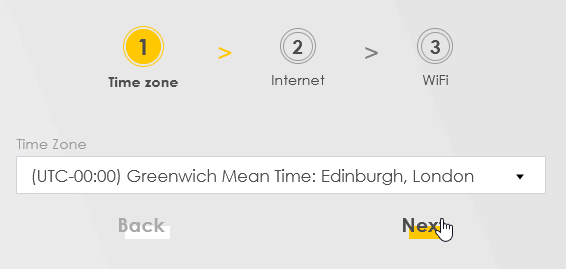

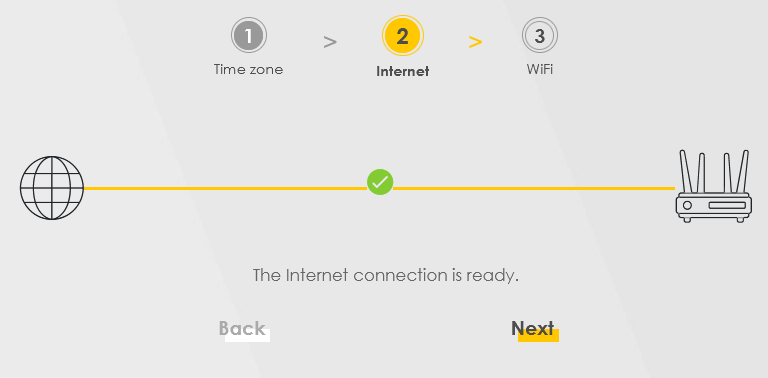

In the next step, set the time zone and click ‘Next’, if everything was connected correctly in the previous steps, the device will automatically connect to the internet.

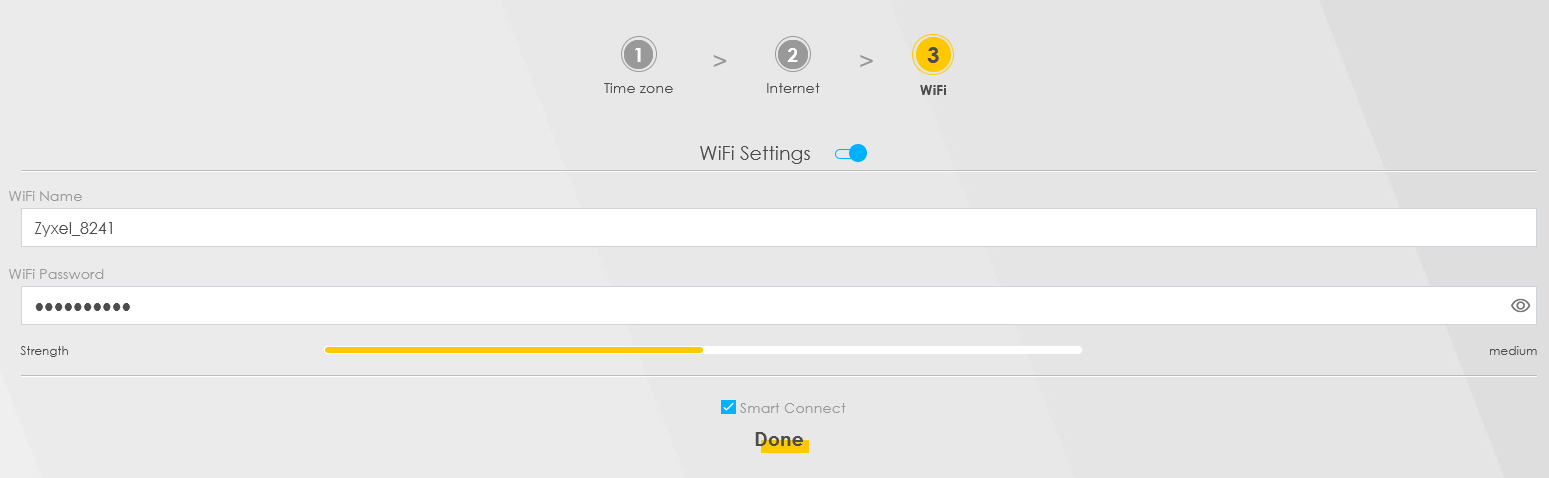

In the last step of wifi setup on your device, you can change the SSID name and set a secure password.

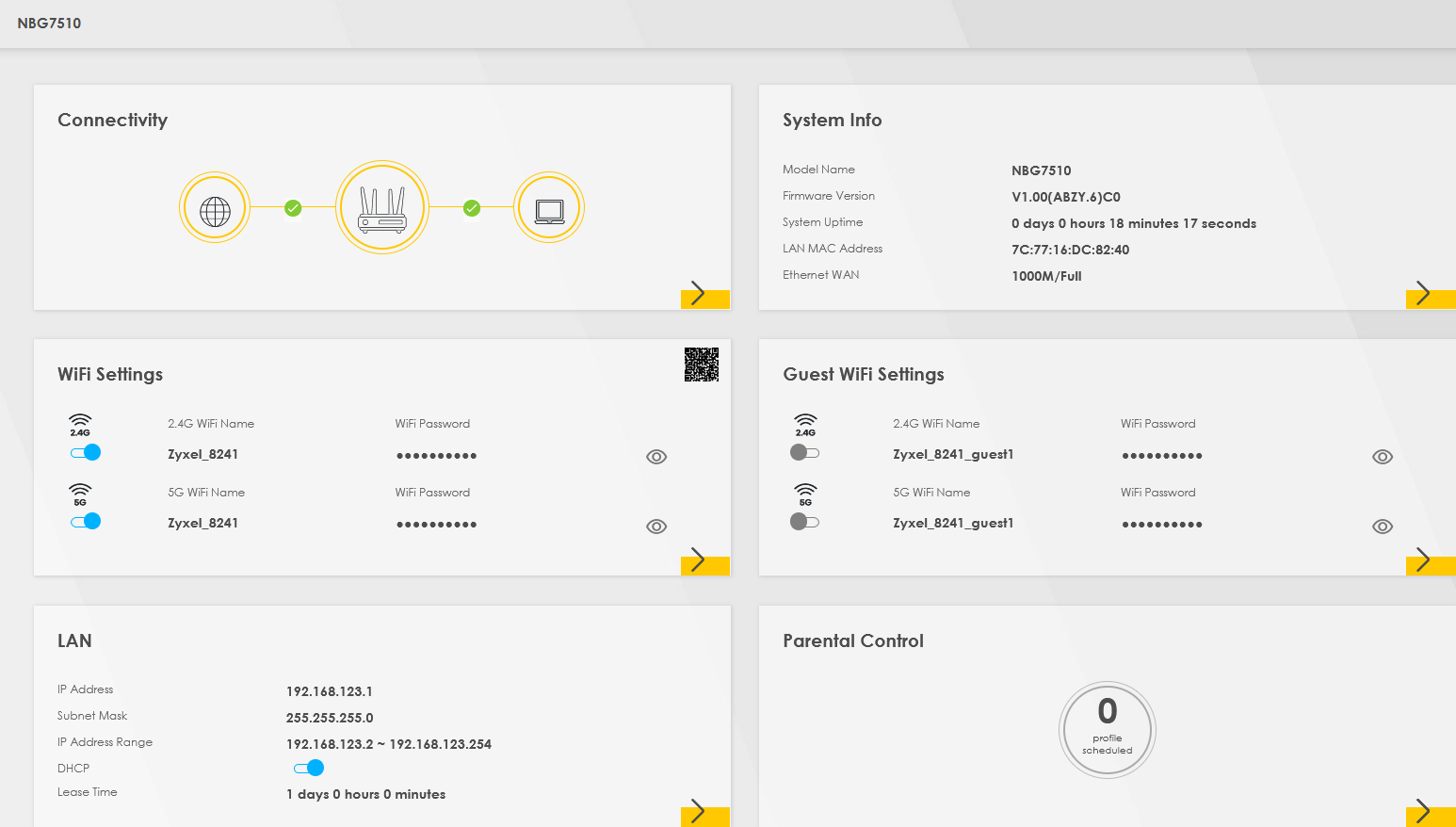

On the main page of the device web interface you can change SSID name, change WIFI password, activate guest WIFI, configure parental control and more.

Firmware Update

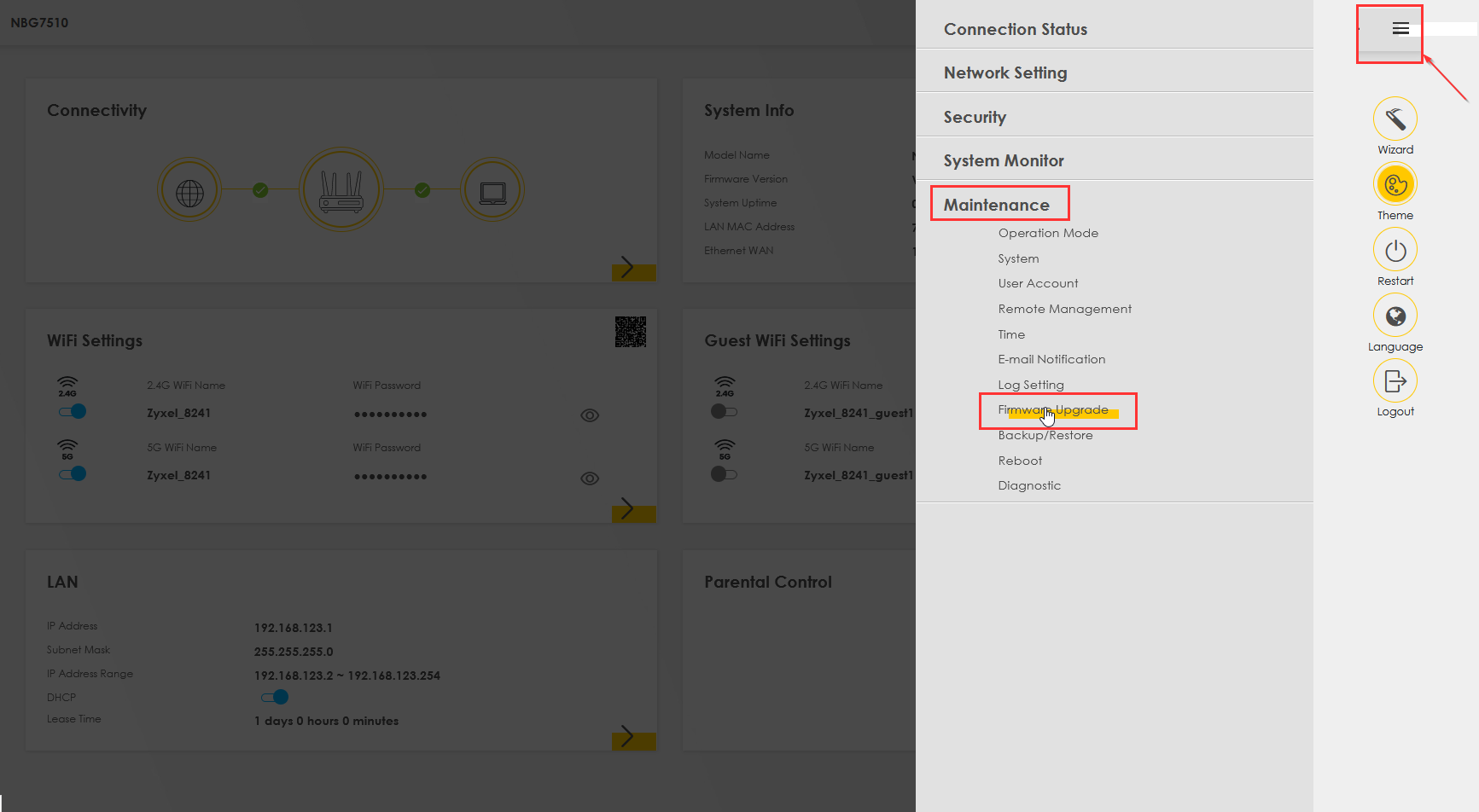

In the upper right corner, click on the three-bar drop-down menu icon.

Go to Maintenance -> Firmware Update

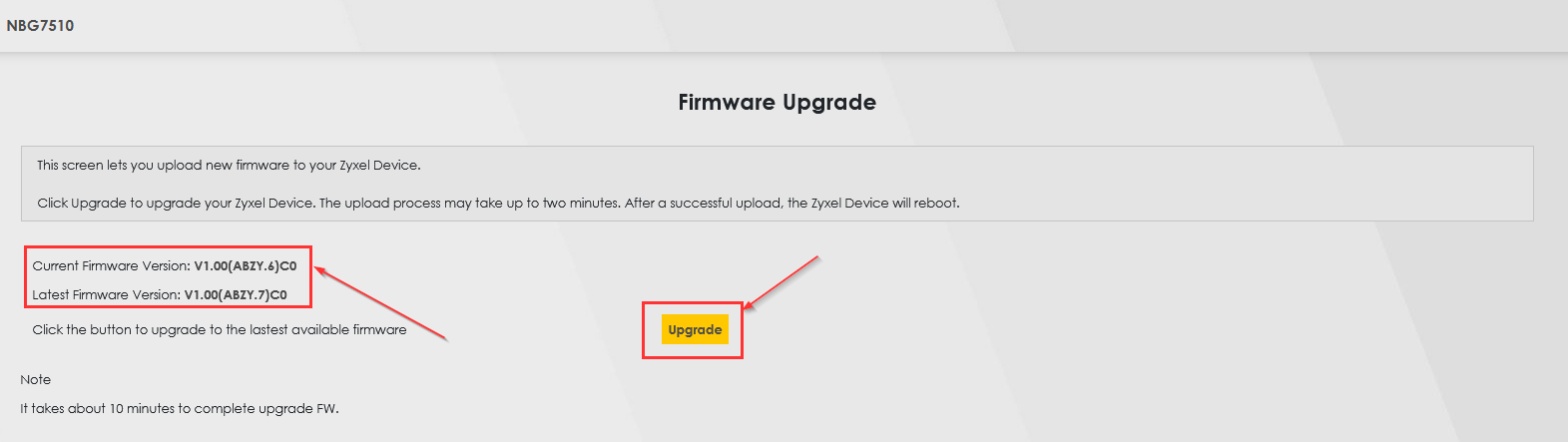

On the next page, you will see the current firmware version of your device and the latest version. Click on the Upgrade button and the installation process will start.
