Firewall - Configure an SSID [WiFi] on USG/USG FLEX/ATP/NXC and UAG-devices

This step by step guide shows how to create an SSID for different devices. This shows how to set up your WiFi on your stand-alone device via the AP profile menu. This article works for USG, USG FLEX, ATP, NXC and UAG devices.



Walkthrough Steps:

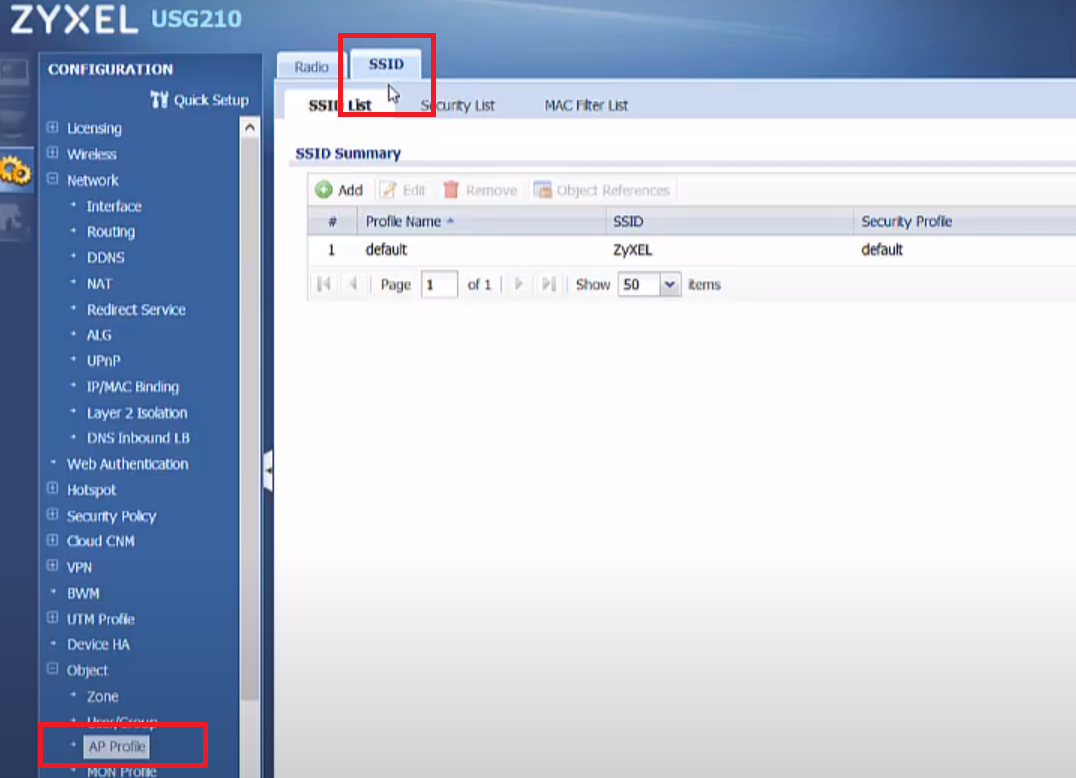

1. Open the Configuration > AP Profile > SSID
2. Click the "Add"-icon to create a new SSID-Profile

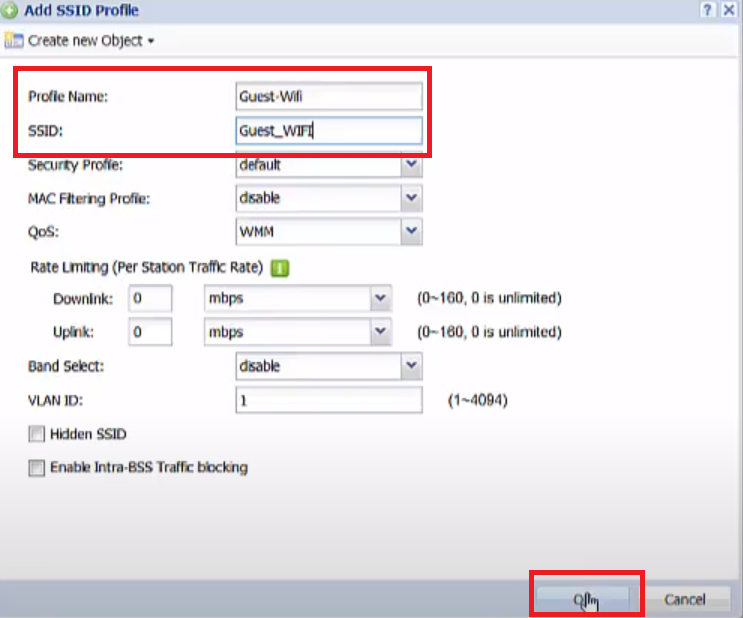

3. Set up SSID according to your demands

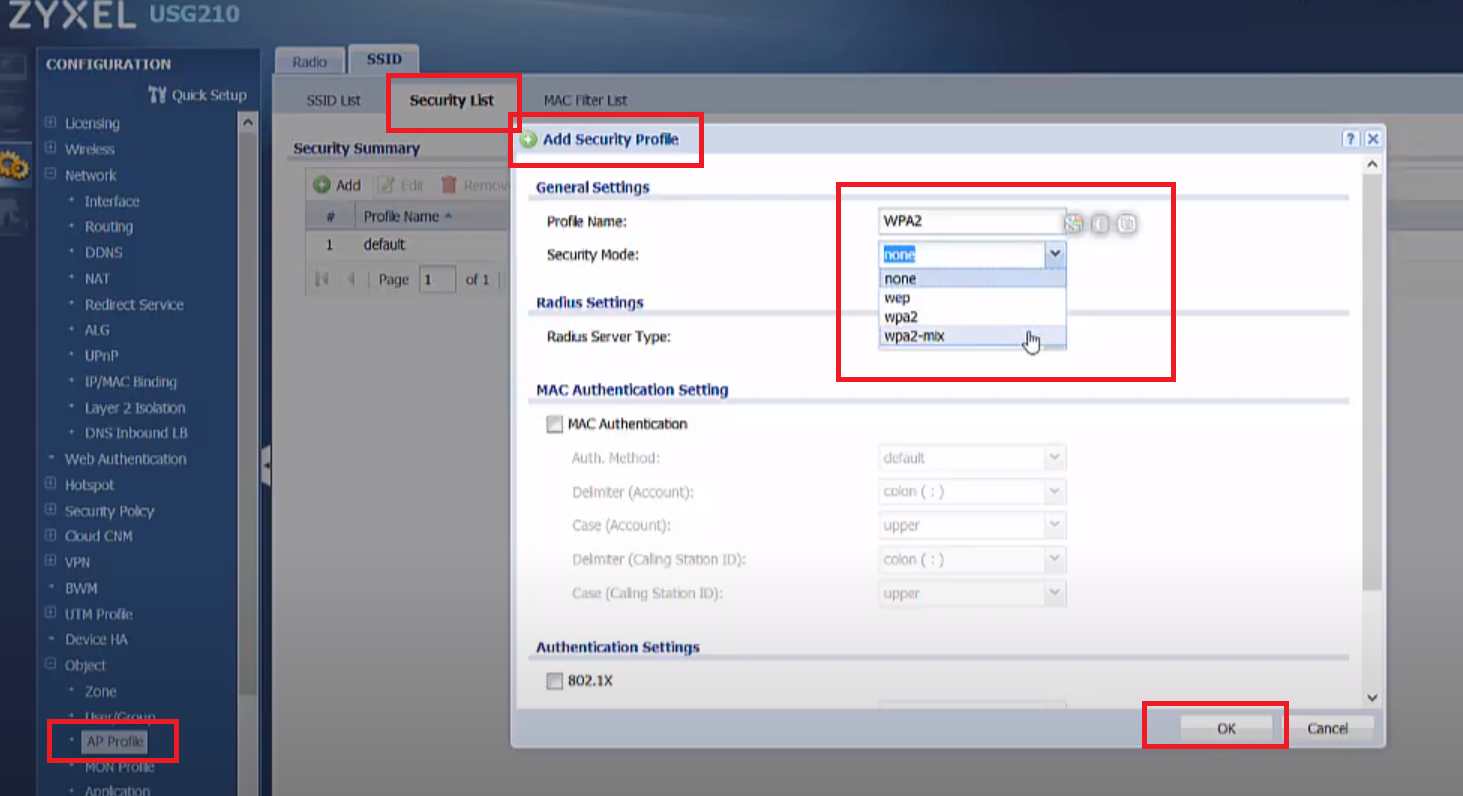

4. If security measurements are desired, open the "Security Profile" tab
5. Add a Security Profile and set it up to your likings

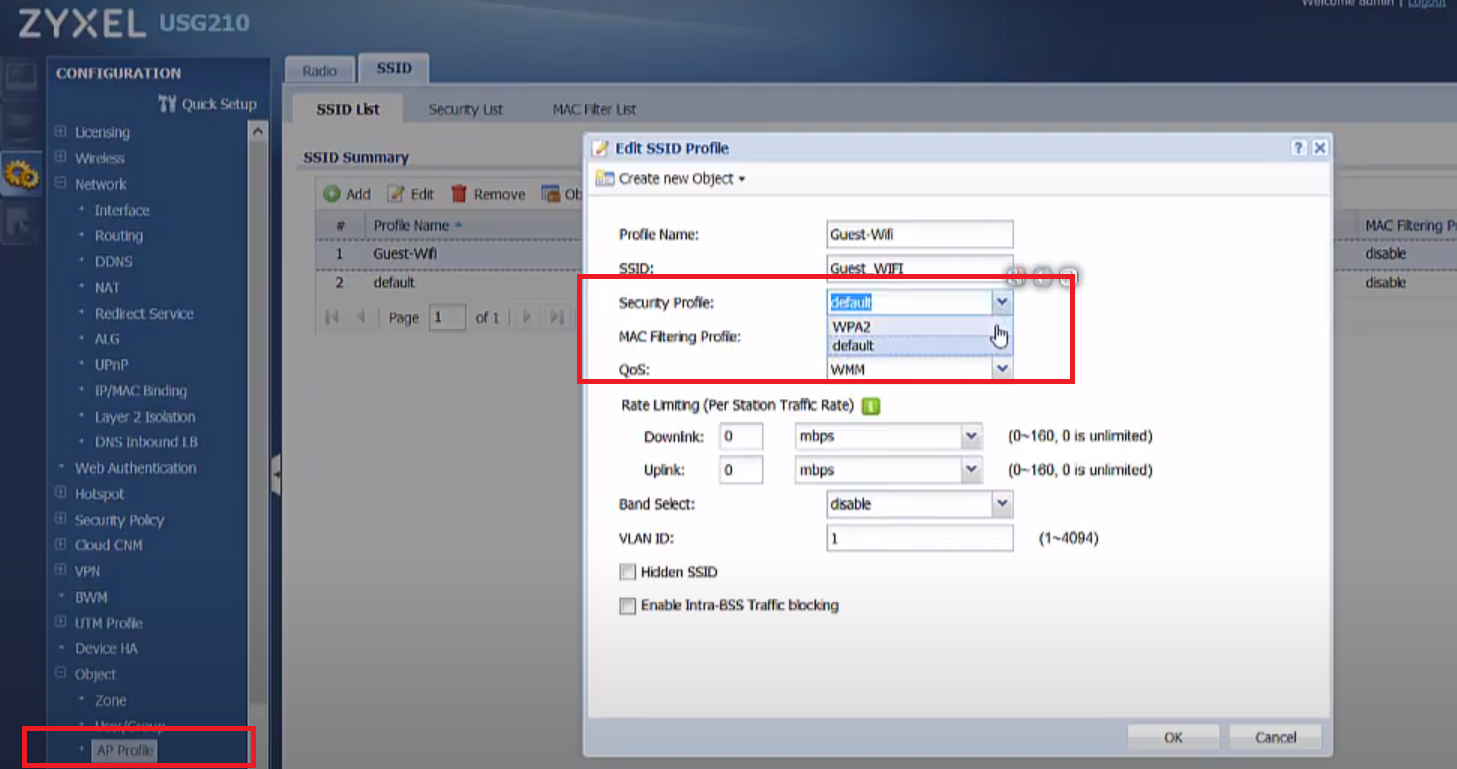

6. Go back to the SSID tab, edit the recently created SSID
7. Add the new Security Profile to the SSID



For more information, refer to the following video:
