RADIUS Authentication with 802.1X

This step by step guide shows how to configure two SSIDs on the NXC controller to authenticate 802.1x on an external RADIUS server of two specific user groups.

Step 1

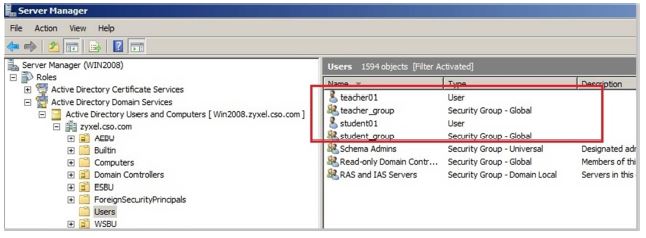

Create two user groups, “teacher_group” and “student_group”, which are
located in the user’s folder on the Windows server. Add the users to the group.

Step 2

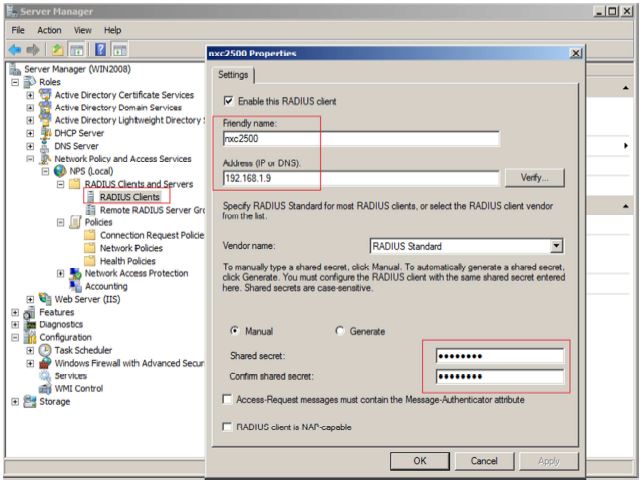

Create the radius client NXC controller on the NPS server.

Step 3
Create two network policies for the user group. User_group1 is for the teacher group.
User_group 2 is for the student group.

Step 4

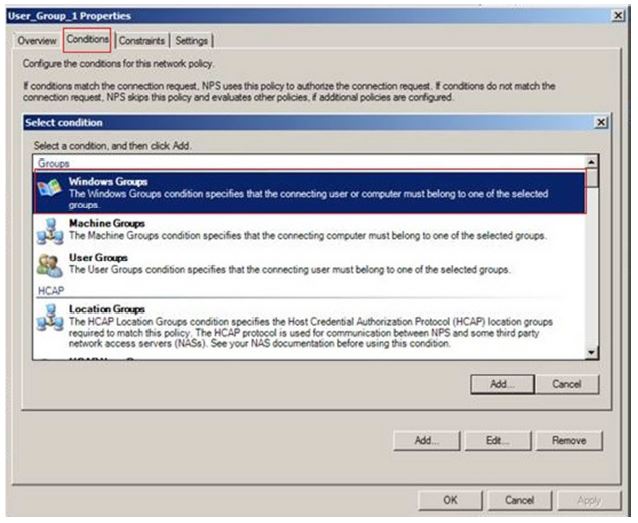

Configured two Conditions of user_group1.
Windows groups and Called Station ID.

Step 4-1
Add the group on user group 1 of the Windows Group setting.

Step 4-2
The value of the string format of the Called-Station-ID have to be meet the
(.+):SSID3$.
The SSID name has to be the same as the NXC controller settings for a different group.

Step 5

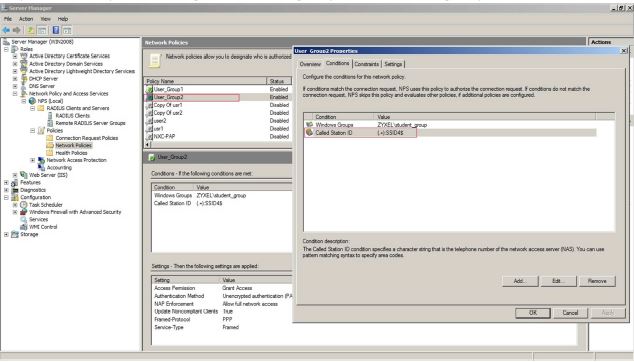

Repeat step 4 to configure the user group 2 for the student group.

Step 6

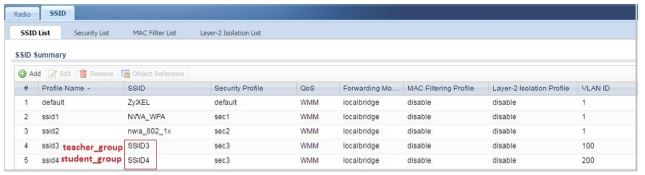

Create the SSID profile on the NXC controller for teacher_group and student_group.

Step 7
Create the AAA server profile and Auth. Method profile on NXC controller.
Use the same security profile for both SSID profile.
