This guide offers an in-depth look at configuring iSCSI on Zyxel NAS Series devices with Windows. Follow these steps to ensure a successful setup:

End-of-Life Product Notice: We regret to inform you that the product "Zyxel NAS Devices" has reached the end of its useful life. As a result, technical support for this device may be limited. Please be aware that any manipulation or use of a device that is already end-of-life is entirely at your own risk. You can find a list of obsolete devices, including their retirement and end-of-support dates, at the link below. This page also provides the latest updated version for your device: End of Life

Log in to the NAS

Access the NAS web interface using the default credentials (username: "admin", password: "1234").
Navigate to "Storage Manager".

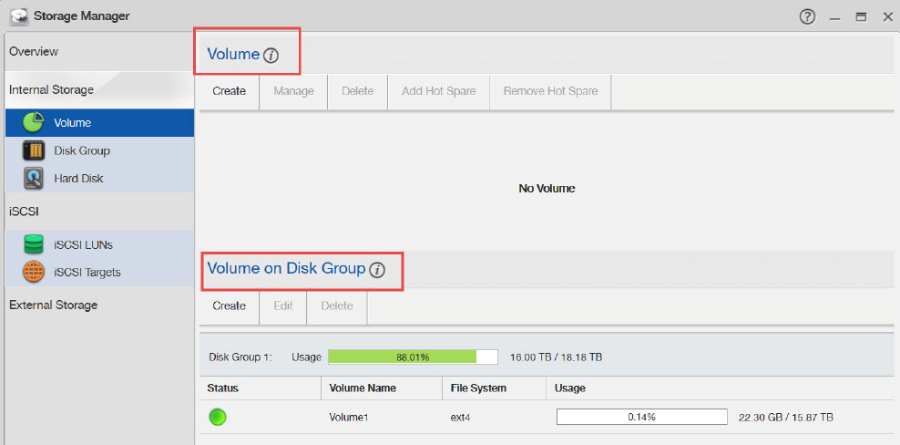

Make sure that an internal storage has been created before.

Create an iSCSI LUN

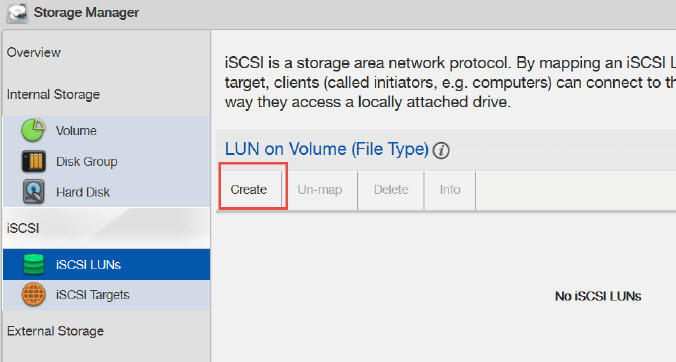

In Storage Manager, click "Create".

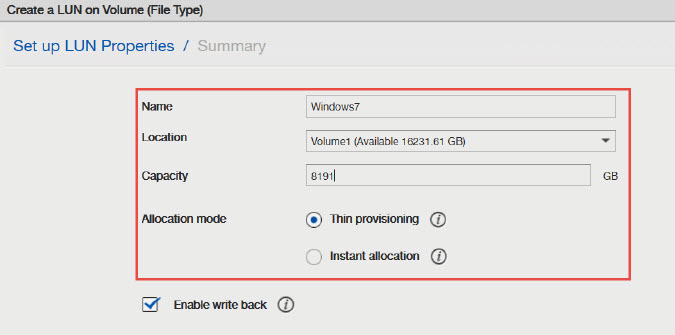

Specify the LUN name, and size, and allocate storage space. Confirm the settings to create the LUN.

use the "i" -icon for further info. Confirm the settings by clicking on "Next" and "Apply" to finish the setup.

Set up the iSCSI Target

Go to the iSCSI settings on the NAS.

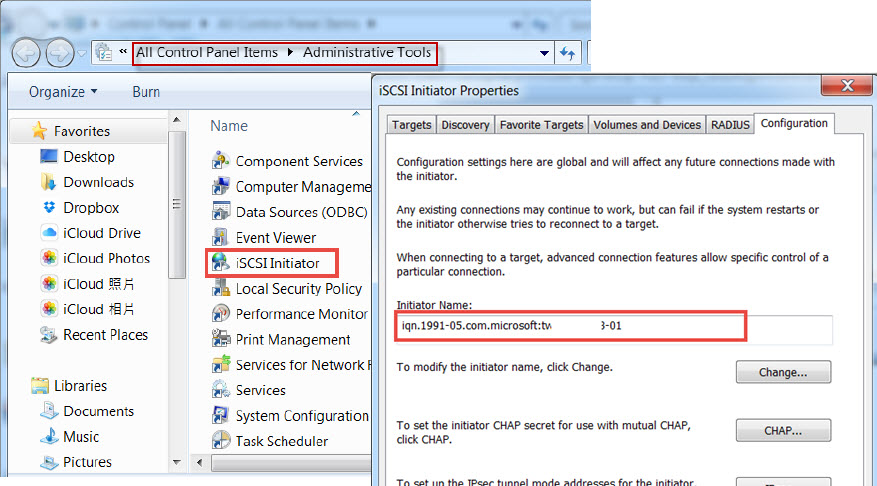

Administrative Tools > iSCSI Initiator > iSCSI Initiator Properties > Configuration

Configure the iSCSI Target by providing a unique name, IQN (iSCSI Qualified Name), and a secure password.

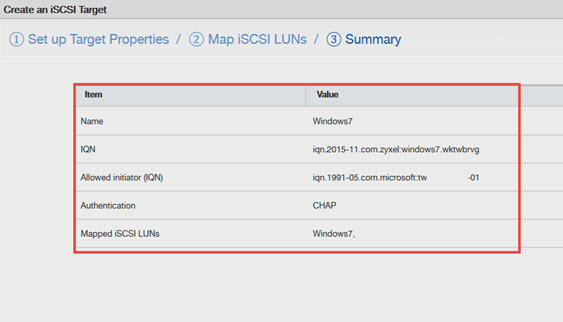

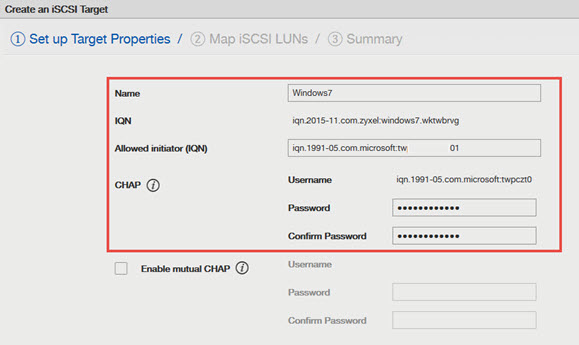

Back to NAS click iSCSI Targets > Create > Enter the information of Name, IQN, and Password > Next
The password is defined by the user and only allows 12-16 characters with 0-9, a-z, A-Z.
Create

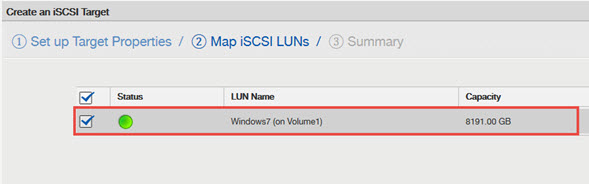

Select the LUN created earlier...

Apply

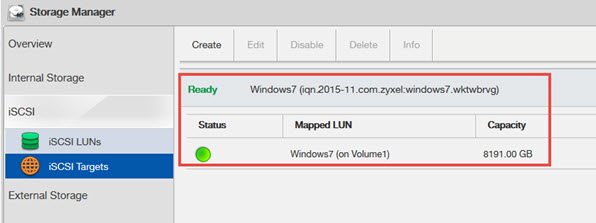

The target is ready to use

Mount the iSCSI LUN in Windows

In Windows go to

Control Panel > Administrative Tools > iSCSI Initiator > iSCSI Initiator Properties > Targets

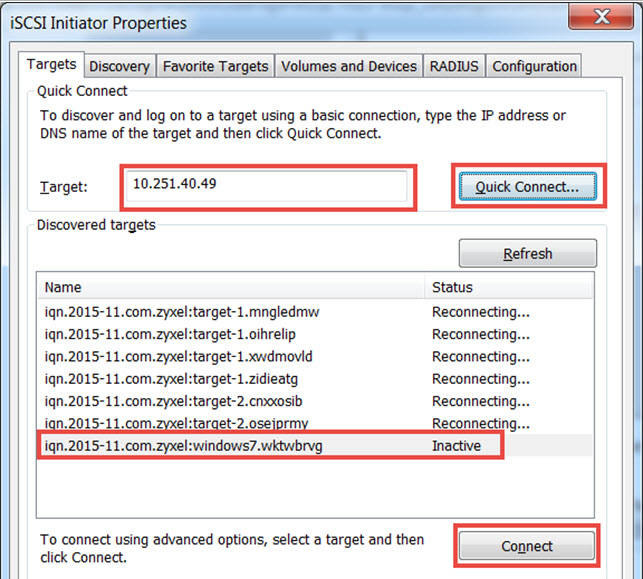

Type the IP address in "Target:"and click "Quick Connect"

Select the target and click "Connect"

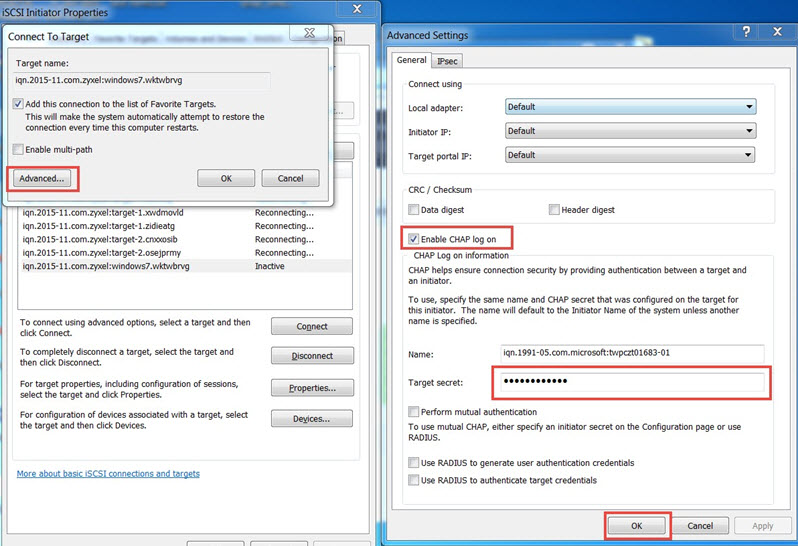

Click "Advanced". Type the password in "Target secret" > click "OK"

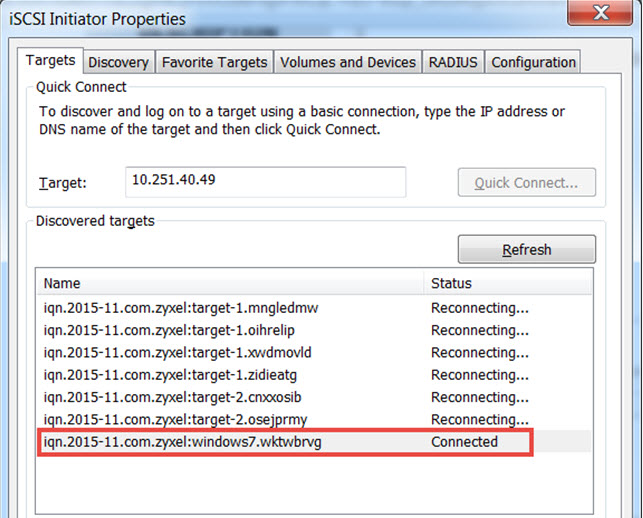

Then the target will show "Connected"

Verification

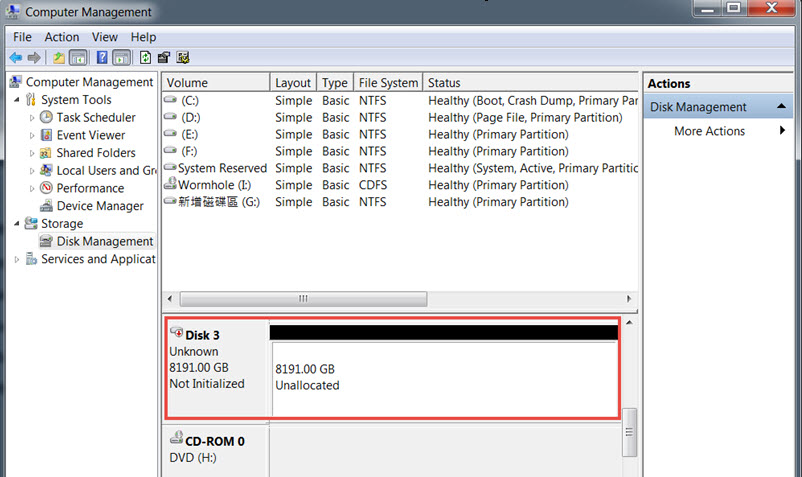

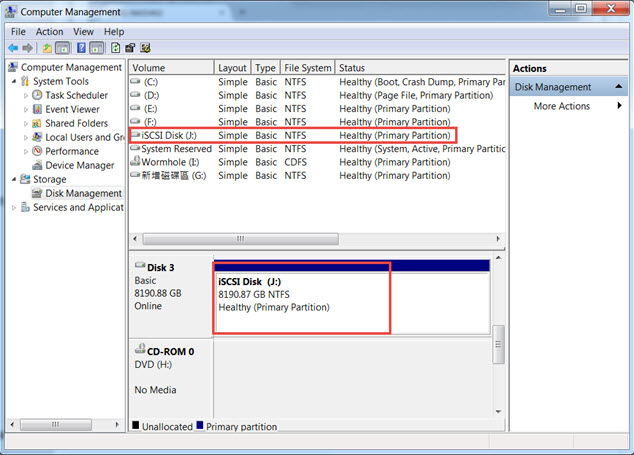

After all upper steps are done, the iSCSI has already been mounted in WIndows. We can check this with "Disk Management".

But before use, the disk needs to be initialized and format as the usable volume. Please follow the steps below:

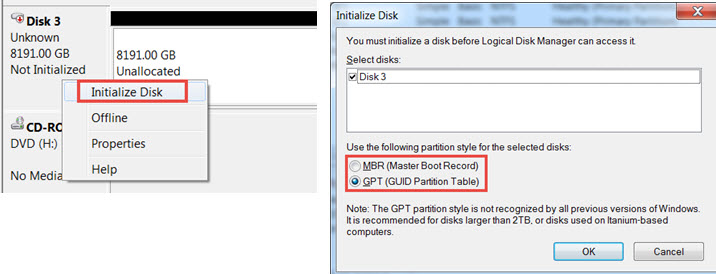

Right-click > select Initialize Disk > choose GPT > OK

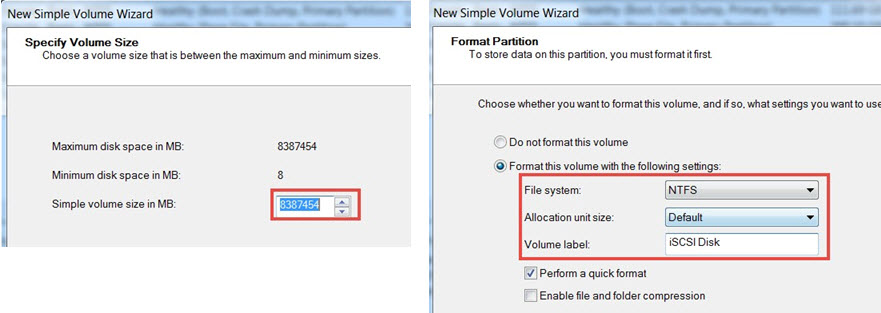

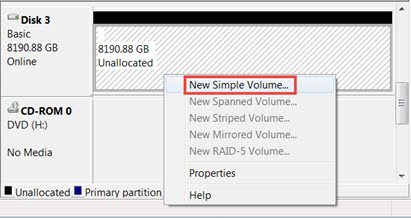

Right-click > select "new simple volume" to create a volume. Wait until the volume creation is finished.

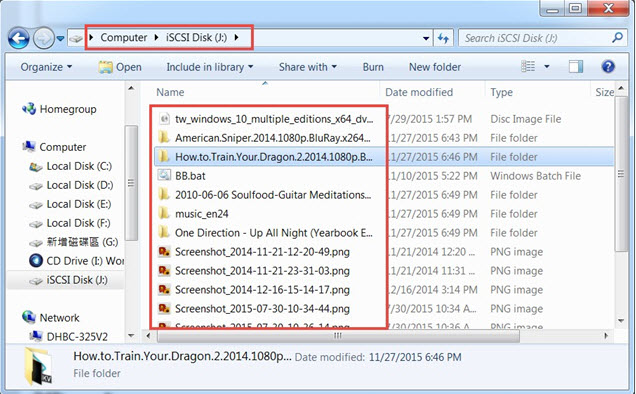

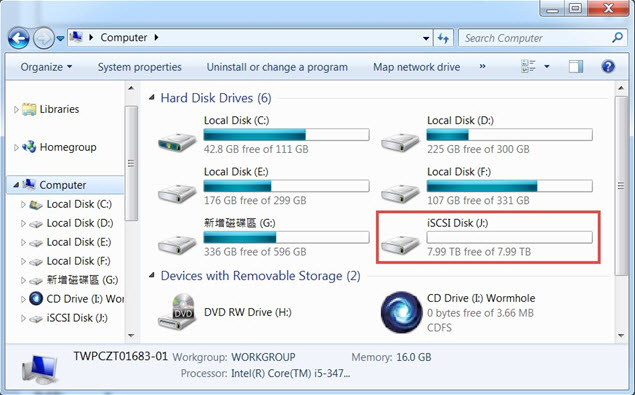

Then the disk will be a local disk and users can save any files in the volume.

Congratulations, you have successfully created and mounted an iSCSI
