This guide provides a comprehensive walkthrough for setting up Wi-Fi on Zyxel NBG series devices, covering essential steps like configuring a wireless network name (SSID) and establishing a strong WPA2 security profile, instructions for configuring primary and guest Wi-Fi networks, and modifying wireless settings, including changing SSID name (WIFI name), Wi-Fi password, and guest network details, applicable to various NBG models.
Login to your router
- You can Login to your router via http://192.168.1.1 (if it's in router mode) or http://192.168.1.2 (non-router mode) with the user name admin and the password 1234
- Non-router mode means that the router is in repeater mode and acts as an access point, while router mode means that the router acts as the main router and hands out IP addresses to the clients in the network.
If you can't reach the router through the IP address, look at this article: Accessing your router via Web GUI
New Web GUI (NBG7510)

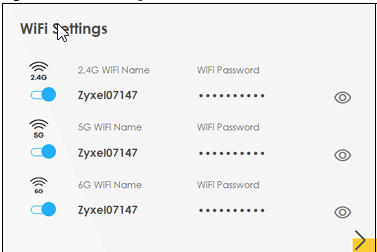

Go to the SSID (WiFi) Section
You can use this screen to toggle the main WiFi network on or off. When the switch is blue, the feature is activated. This screen and the QR code in the top-right corner allow you to view the SSID (WiFi network name) and passwords for the primary WiFi networks. To display or hide WiFi passwords, click the eye icon ( ).
Click the Arrow icon ( ) to configure the SSIDs and/or passwords for your main WiFi networks. Click the Eye icon ( ) to display the characters as you enter the WiFi Password. Scanning the QR code is an alternative way to connect your WiFi client to the WiFi network. Select Smart Connect to use the same SSID for 2.4 GHz and 5 GHz bands. Note: Note that you have to disable Zyxel MESH in the Network Setting > Wireless > Mesh screen to deselect the Smart Connect check box.
Guest WiFi Settings
This screen allows you to enable or disable the guest 2.4 GHz, 5 GHz, or 6 GHz WiFi networks. When the switch is moved to the right ( ), the feature is turned on. If the switch is not to the right, the feature is off. You can view the SSIDs (WiFi network names) and passwords from this screen. To reveal or hide the WiFi passwords, click the eye icon.
Click the Arrow icon ( ) to open the following screen. Use this screen configure the SSIDs and/or passwords for your guest WiFi networks.
To set different SSIDs for the 2.4 GHz and 5 GHz guest WiFi networks, uncheck the Smart Connect option in the WiFi Settings screen. This will update the Guest WiFi Settings screen accordingly. Please note that you must first disable Zyxel MESH by going to Network Setting > Wireless > Mesh before you can uncheck the Smart Connect option.
Old Web GUI (NBG418N)
Navigate to Configuration -> Network -> Wireless LAN -> General
Write your new WiFi name and WiFi Password
- Change your WiFi Name (Network Name (SSID)) - This will be the name that will appear on your device's WiFi list
- Change the security mode to WPA2-PSK in the dropdown menu
- Choose the encryption type AES
- Change the WiFi password (Pre-Shared Key) - This will be the WiFi password that you will enter for the WiFi
Note! We recommend using the Security mode WPA2 instead of WPA because of security reasons.
