This article provides a step-by-step guide on setting up your WiFi using the stand-alone mode configuration on your NWA210AX AP. Initially, you'll need to configure the Security Profile, encompassing the password and authentication details for your users. Subsequently, proceed to set up the SSID profile, defining the WiFi SSID that is broadcasted to enable devices to identify and connect to the WiFi network. Finally, the WLAN setting, serving as the "global" configuration, brings all your settings into practical application.

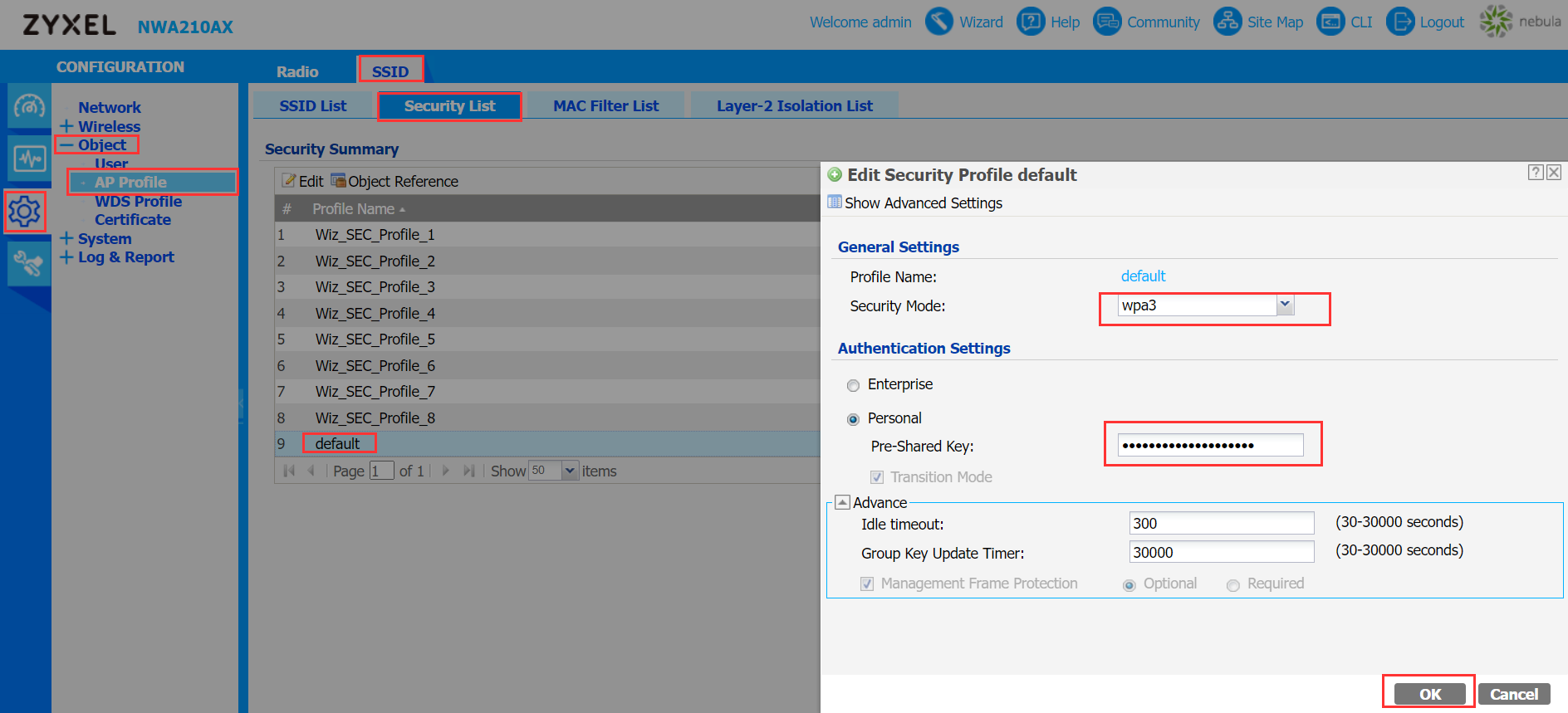

Security Profile
Go to Configuration → Object → AP Profile → SSID → Security List
The ability to create a new profile or edit the default profile, in our example we will make changes to an existing profile.
Select “Security Mode” - we recommend using WPA3 (but make sure your devices support WPA3) and enter the password in the "Pre-Shared Key" field, then press "OK."

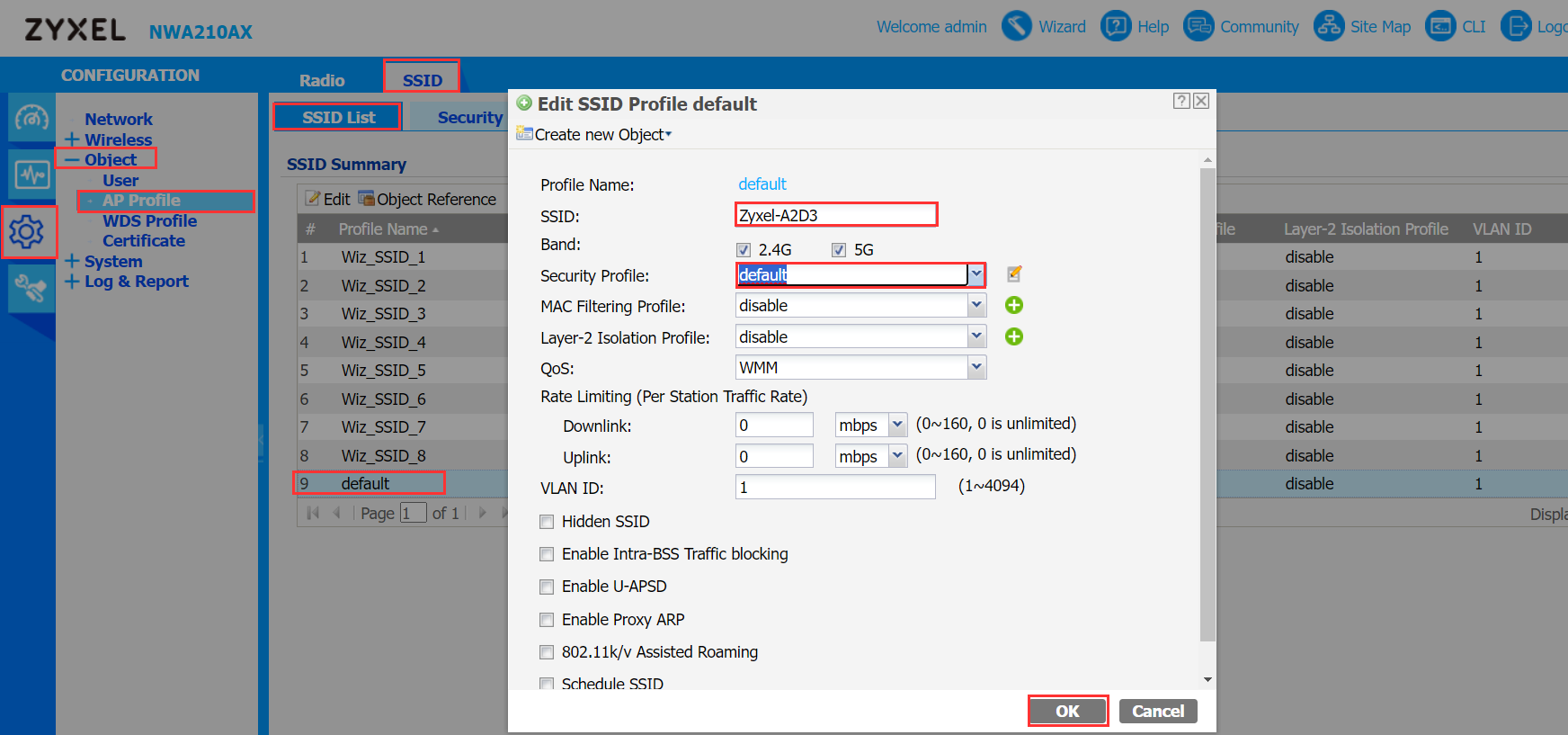

SSID Profile
Go to Configuration → Object → AP Profile → SSID → SSID List
Open the "default" profile you have already created and give the name of the wireless network you want to broadcast. Ensure that the "Security Profile" field contains the profile we edited in the previous step. Click "OK" to save your changes.

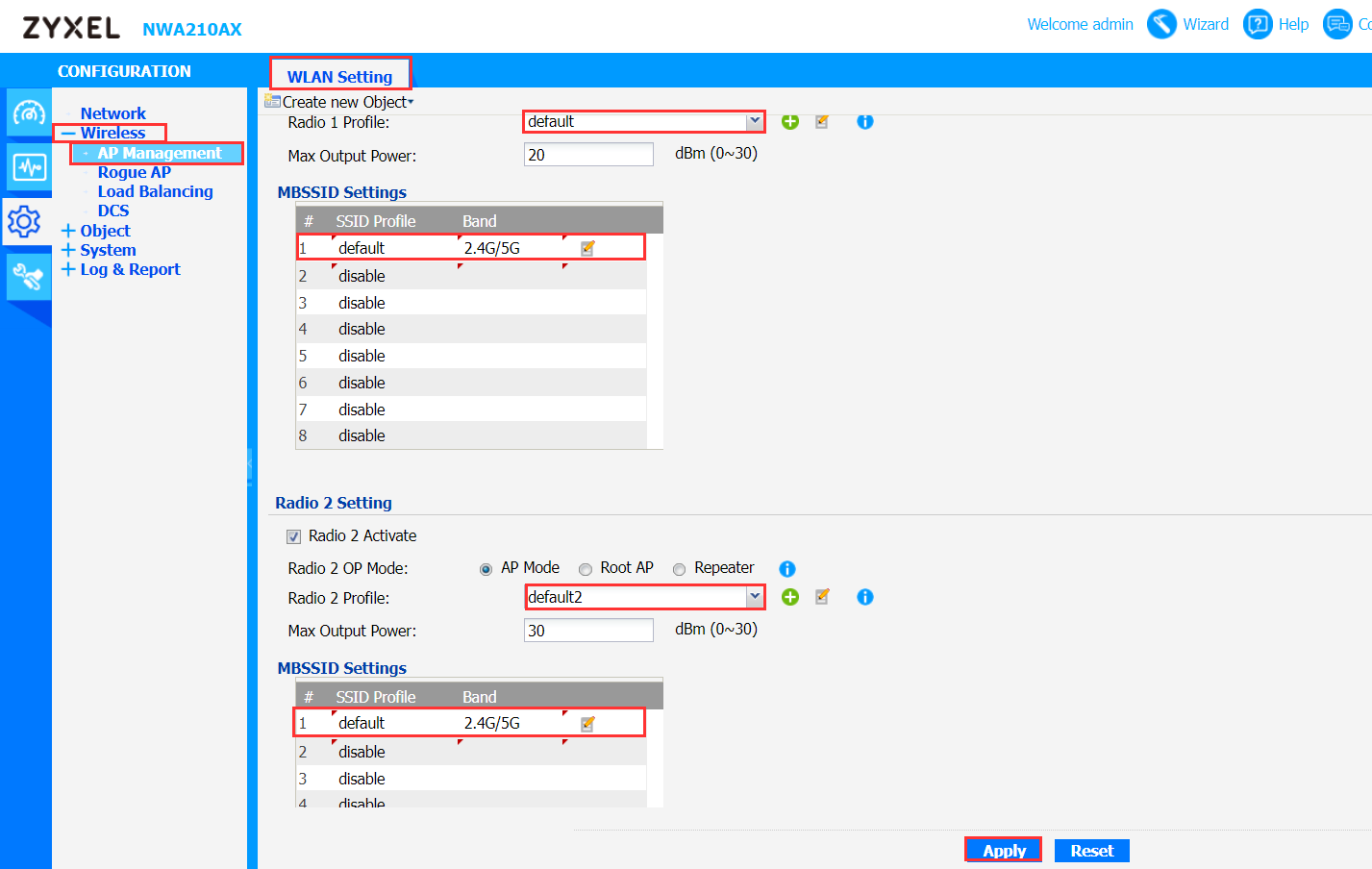

WLAN Setting
Go to Configuration → Wireless → AP Management → WLAN Setting
On the "Radio 1 Settings" and "Radio 2 Settings", select the SSIDs you created in the previous step. Since we used the default SSID profile, under MSSSID Settings Radio 1 and MSSSID Settings Radio 2, we specify the SSID Profile "default".
