NR5101 - How to use the External Antennas

In this article, we will look at the external Antennas of the NR5101 and the Limitations.

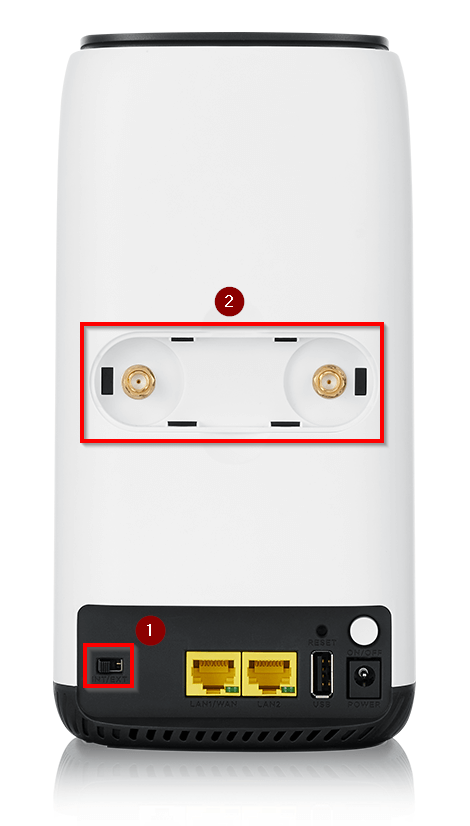

Let's have a look at the Back of the Device:

1) Hardware Switch to switch between the Internal and External Antennas

2) SMA connectors for the external Antennas



Antenna Limitations:

The NR5101's external antenna and device ability support 3300-4200 MHz.

Both Antennas have to be connected as they provide Mult-Mimo.



To use the external Antennas, connect them to the external connectors and flick the switch to the "ext." Position.

The Device now uses the external Antennas.
